Adjustable Mold Block Wire Winder Electric Coil Winding Machine 100rpm

Adjustable Mold Block Wire Winder Electric Motor Coil Winding Machine

Description of motor coil winding machine MW1200

Electric motor coil winding machine MW1200 is mainly used to wind motor coils and other similar products. The motor coil winding machine is equipped with an adjustable movable mold, which can be used to mount a wire mould on the upper and lower movable blocks with long screws respectively. By turning a screw rods of the movable die, the height of the wire mould can be adjusted with range from 150mm to 1200mm, therefore the motor coil winding machine can be used to wind different size of the motor coil.

Quick details of motor coil winding machine MW1200

• 3KW motor providing strong pulling force
• 1400mm machine height
• Winding speed 0 ~ 100rpm
• Smooth running
• Adjustable blocks
• Simply structure

Main Parameters of motor coil winding machine MW1200

Typical standard specifications of motor coil winding machine MW1200 are shown below, however, the motor coil winding machine can also be manufactured as requested.

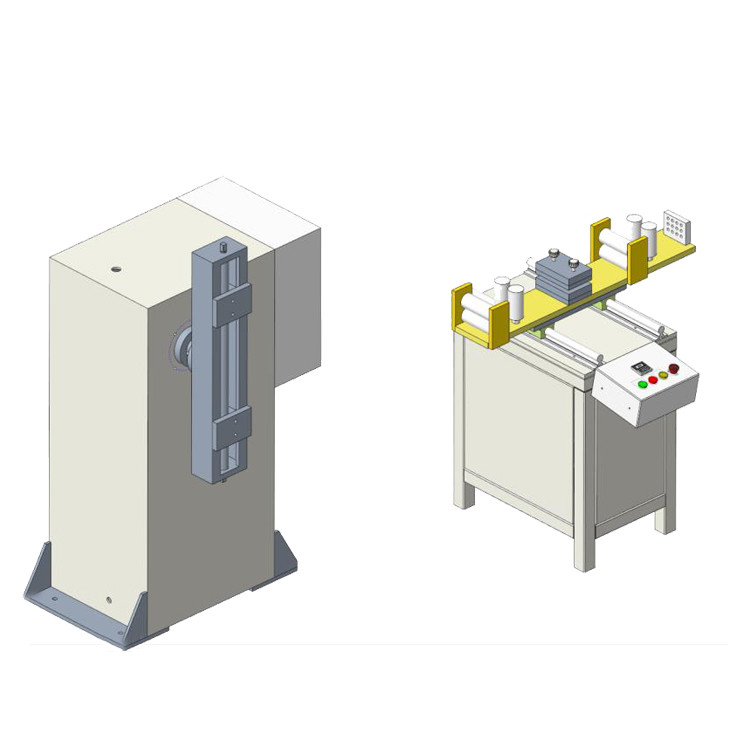

Fig 1: Motor coil winding machine MW1200's full view

Fig 2: Motor coil winding machine MW1200's matched coil former
