Copper Wire Winder Electric Motor Coil Winding Machine 200rpm

Copper Wire Winder Electric Motor Coil Winding Machine 200rpm

Copper Wire Winder Electric Motor Coil Winding Machine 200rpm
Copper Wire Winder Electric Motor Coil Winding Machine 200rpm

Large Image :  Copper Wire Winder Electric Motor Coil Winding Machine 200rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Semi Automaitc Motor Coil Winding Machine Application: Winding Motor Coil
Mold Range: 150 ~ 800mm Color: Optinal
Motor Power: 3kw Rotating Speed: 0 ~ 200rpm
Machine Height: 1400mm Warranty: 12 Months
High Light:

Motor Coil Winding Machine 400rpm

,

1400mm copper wire winding machine

,

3kw Motor Coil Winding Machine

Factory Direct Sales Copper Wire Winder Cheap Electric Motor Coil Winding Machine





Description of motor coil winding machine MW800



Electric motor coil winding machine MW800 can be used to wind different sized wire for making coils. The motor coil winding machine is suitable for winding all kinds of small and medium-sized motor coils and similar products. The motor coil winding machine can wind the coil automatically after setting corresponding parameters, such as number of turns. The motor coil winding machine features easy operation, strong practicability, complete functions and strong force, etc.





Quick details of motor coil winding machine MW800

  • Slow starting, when the machine begins to run, the rotating is very slow for sage
  • Smooth running, during running, the performance of the machine is very high
  • Strong pulling force, with 2.2kw motor, the machine is with a strong pulling force
  • High speed, the max winding sped can reach 200 rpm
  • Simply structure, with this, the machine features easy maintaining
  • Easy operating, it is very easy to operate the machine, just need to input the parameters and press the foot pedal



Main Parameters of motor coil winding machine MW800



Typical standard specifications of motor coil winding machine MW800 are shown below, however, the machine can also be manufactured as requested.



Machine Height: 1400mm
Mold Expansible Range: 150 ~ 800mm
Max Winding Speed: 0 ~ 200 rpm
Counting Range: 0-9999.9
Max. Loading Capacity: 500KG
Winding Motor Power: 2.2 KW
Machine Colour: customized
Machine Dimension(LxWxH): 900x700x1400mm



Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 0

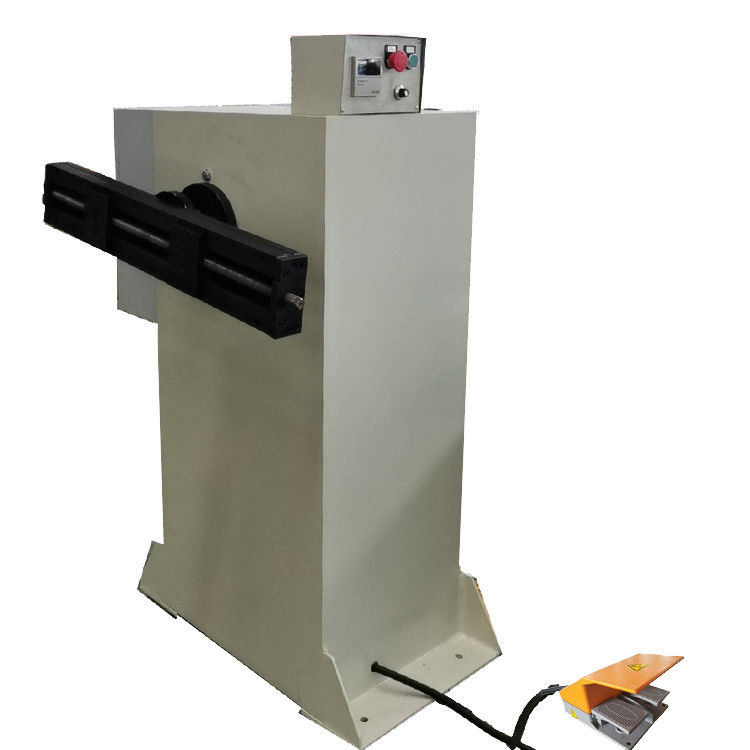

Fig 1: Motor coil winding machine MW800's full view



Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 1

Fig 2: Motor coil winding machine MW800's control board



Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 2Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 3Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 4Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 5Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 6Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 7Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 8Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 9Copper Wire Winder Electric Motor Coil Winding Machine 200rpm 10
