| Product Name: | Motor Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Flange Diameter: | 150mm | Color: | Optinal |
| Motor Power: | 2.2kw | Rotating Speed: | 400rpm |
| Machine Height: | 1400mm | Warranty: | 12 Months |
| High Light: | 400rpm semi automatic coil winding machine,2.2kw Copper Wire Winder,Motor semi automatic coil winding machine |
||
High Speed Semi Automatic Motor Coil Winding Machine Copper Wire Winder
Description of motor coil winding machine MW150
High speed semi automatic coil winding machine MW150 can be used to wind different size copper or aluminium wire. The motor coil winding machine is mainly used to wind motor coil and other similar products. This motor coil winding machine is provided with main strong steel frame, flange, foot pedal, counter, control board, 2.2kw winding motor, gear box, and electrical cabinet. The mold can be mounted on the flange. The diameter of the flange is 150mm. The motor coil winding machine features strong force, high winding speed and easy to operate.
Quick details of motor coil winding machine MW150
Main parameters of motor coil winding machine MW150
Typical standard specifications of motor coil winding machine MW150 are shown below, however, the motor coil winding machine can also be manufactured as requested.
| Total Height: | 1400mm |
| Flange Diameter: | 150mm (optional) |
| Winding Speed: | 0-400rpm |
| Counting Range: | 0-9999.9 |
| Max. Loading Capacity: | 500KG |
| Motor Power: | 2.2KW |
| Colour: | customized |
| Machine Dimension(LxWxH): | 900x700x1400mm |

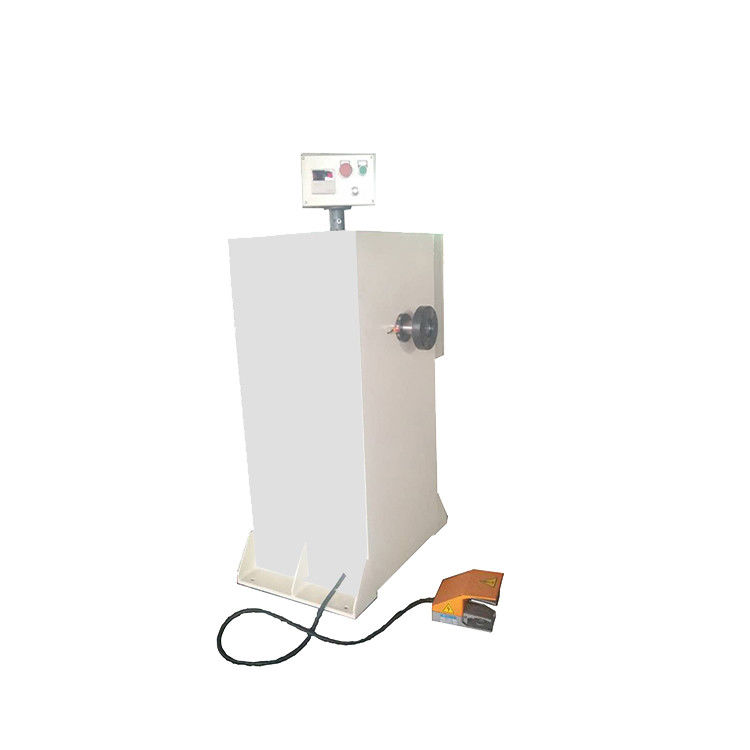

Fig 1: Motor coil winding machine MW150's full view
Fig 2: Motor coil winding machine MW150's control board
