Description of motor coil winding machine MW1200

Motor coil winding machine MW1200 is a professional winder equipment. This kind of motor coil winding machine can be used to wind copper or aluminium coil. These wound coils can be used in motors or other similar products. The motor coil winding machine is provided with an adjustable mold, a counter, foot pedal and so on. The mold of the motor coil winding machine is suitable for fixing different kinds of winding anchor, which can wind different sizes of coils. With two movable bliocks , The mold has two movable block, and the distance between the two blocks can be adjusted and the adjustable range is from 150mm to 1200mm. The motor coil winding machine can start and stop running through the food pedal. It is very easy to operate the motor coil winding machine.

Quick details of motor coil winding machine MW1200

• Motor power 4kw
• Machine body height 1400mm
• Winding speed 0 ~ 80rpm
• Smooth running
• Adjustable blocks
• Simply structure

Main parameters of motor coil winding machine MW1200

Typical standard specifications of motor coil winding machine MW1200 are shown below, however, the motor coil winding machine can also be manufactured as requested.

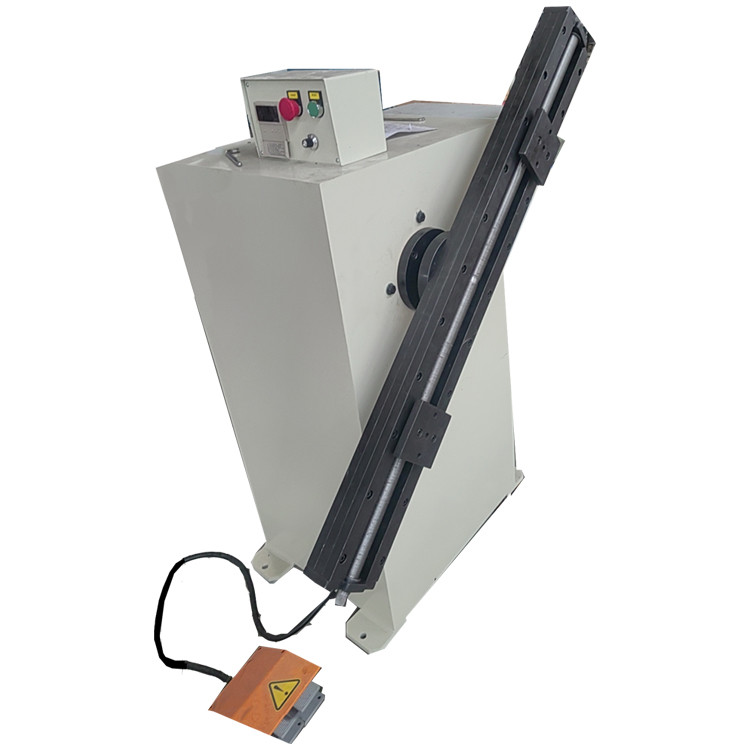

Fig 1: Motor coil winding machine MW1200's full view

Fig 2: Motor coil winding machine MW1200's control board
