CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter

1 set
MOQ
negotiable
Price
CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Core Cutting Machine
Usage: Shear Silicon Steel Sheet
Sheet Width: Max. 40 - 400mm
Sheet Thickness: 0.23 ~ 0.35mm
Action: Two Cuts Two Punch
Feature: Step Lap
Color: Optional
Warranty: 12 Months
Highlight:

120m/min silicon steel cutting machine

,

12.5kw core cutting equipment

,

CRGO silicon steel cutting machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: HJX400-LLB
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

CRGO Step Lap Silicon Steel Cutter Equipment Transformer Core Cutting Machine





Description



Transformer Core Cutting Machine HJX400-LLB is a professional equipment for cutting silicon steel to make transformer iron core. The transformer core cutting machine adopts single-side locating and can adjust the core width manually. Servo motors are used to drive punch and cut action. The transformer core cutting machine’s feeding system is also driven by AC servo system.





Quick Detail:



  • Cutting thickness 0.23 ~ 0.35mm
  • Cutting width 40 ~ 400mm
  • Feeding speed 120m/min
  • Step lap
  • Power 12.5kw
  • One year warranty





Main Parameters



The standard specifications of HJX400-LLB is shown below, however, the specifications can be amended as requested.



Technical Specifications HJX400-LLB
Cutting sheet thickness 0.23-0.35 mm
Cutting sheet width 40-400 mm
Cutting sheet length 350-9999 mm
Feeding sheet speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring ≤0.02 mm
Installation capacity 12.5 kw



CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 0

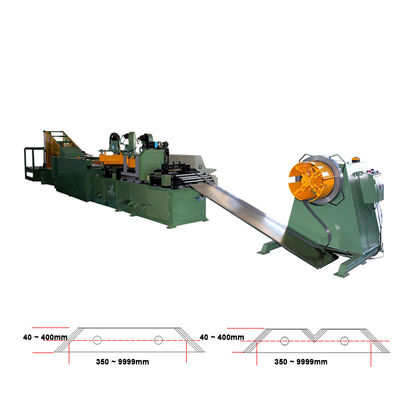

Fig 1: Transformer core cutting machine HJX400-LLB's full view



CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 1

Fig 2: Transformer core cutting machine HJX400-LLB's side view

CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 2CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 3

CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 4CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 5

CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 6CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 7CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 8CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 9CRGO Step Lap Silicon Steel Cutting Machine Transformer Core Cutter 10
