| Product Name: | Transformer Core Cutting Machine | Function: | Making Core Limb |
|---|---|---|---|
| Sheet Thickness: | 0.2~0.35mm | Sheet Width: | 40 ~ 300mm |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | CRGO Transformer Core Cutting Machine,0.2mm Transformer Core Cutting Machine,40mm small core cutting machine |
||
High Effective CRGO Transformer Core Cutting Machine Making Core Limb
Description of transformer core cutting machine
Transformer core cutting machine ZZ300 is a professional equipment for making core limb for transformer core. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm. The transformer core cutting machine can be used to cut different shapes of the core limb, such as equilateral core limb, eccentric center core limb, etc. The transformer core cutting machine for making core limb features easy operation, high production effective and so on.
Quick details of transformer core cutting machine
Sheet thickness 0.2 ~ 0.35mm
Sheet width 40 ~ 300mm
Feeding speed 180m/min
Power 14kw
Technical parameters of transformer core cutting machine
Typical standard specifications of transformer core cutting machine ZZ300 are shown below, however this can be modified as requested.
| Roll Material Width Tolerance: | ≤±0.1mm |
| Roll Material Burr Length: | ≤0.02mm |
| Sheet Thickness: | 0.2～ 0.35mm |
| Sheet Width: | 40～300mm |
| Sheet Length: | 150～2500mm |
| Feeding speed: | 0～180m/min |
| Power: | 14Kw |

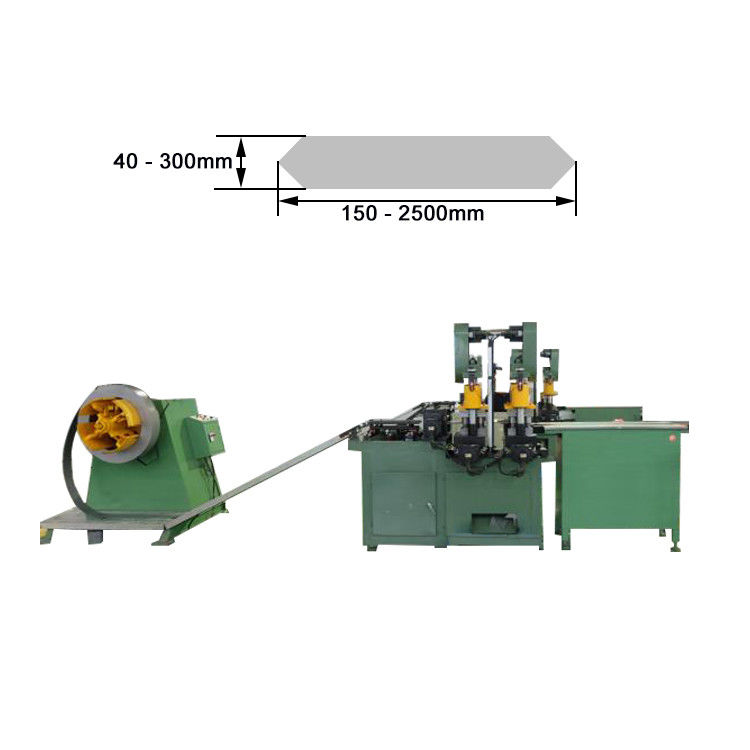

Fig 1: Transformer core cutting machine ZZ300's full view
Fig 2: Transformer core cutting machine ZZ300's side view
