| Product Name: | Transformer Core Cutting Machine | Application: | Shearing Silicon Steel Strip |
|---|---|---|---|
| Strip Width: | 60 - 600mm | Strip Thickness: | 0.23 - 0.35mm |
| Feature: | Step Lap, Punching, Cutting | Warranty: | 12 Months |
| High Light: | Transformer Core Cutting Machine 600mm,Step Lap Transformer Core Cutting Machine,0.35mm silicon steel cutting machine |
||
Step Lap Transformer Core Cutting Machine 600mm Width Silicon Steel Strip Cut
Description of transformer core cutting machine HJX600-LLB
Automatic transformer core cutting machine HJX600-LLB is one kind of professional double shearing and double punching type silicon steel cutting machine. The transformer core cutting machine can be used to cut and punch iron core sheet to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet, which can be used in small and medium sized transformers. The transformer core cutting machine adopts servo motor for cutting, punching and feeding the silicon steel strip. The transformer core cutting machine features high automation, easy operation, and so on.
Quick details of transformer core cutting machine
Technical parameters of transformer core cutting machine
Typical standard specifications of transformer core cutting machine HJX600-LLB are shown below, however this can be modified as requested.
| Sheet Width Tolerance: | ≤±0.1mm |
| Sheet Burr Length: | ≤0.03mm |
| Sheet S Degree Tolerance: | single direction less than 0.1mm in 1000mm |
| Sheet Wave Degree: | ≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
| Sheet Thickness: | 0.23～ 0.35mm |
| Sheet Width: | 60～600mm |
| Sheet Length: | 350～9999mm |
| Hole Punched Dia. | Φ 10mm～24mm |
| Hole Position: | can be bidirectional offset along the center line |
| V-notch Punching Eccentricity | ±30mm |
| Feeding Sheet Speed: | 0～200m/min |
| Total Power: | 18Kw |

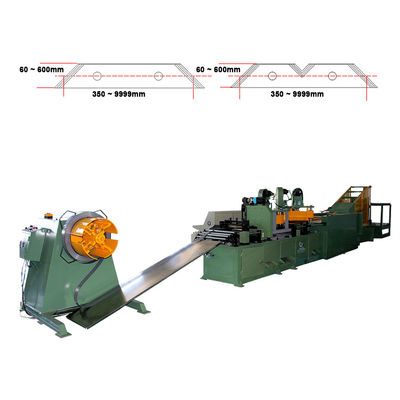

Fig 1: Transformer core cutting machine HJX600-LLB's full view
Fig 2: Transformer core cutting machine HJX600-LLB's side view
