| Product Name: | Transformer Core Cutting Machine | Cutting Mode: | Step Lap |
|---|---|---|---|
| Cutting Thickness: | 0.23 ~ 0.35mm | Cutting Width: | 40 ~ 300mm |
| Feeding Speed: | 120m/min | Warranty: | 12 Months |
| High Light: | 300mm Transformer Core Cutting Machine,0.23mm Transformer Core Cutting Machine,300mm automatic core cutting machine |
||
Automatic Step Lap Two Cutting Two Punching Transformer Core Cutting Machine
Description of transformer core cutting machine HJX300-LLB
Transformer Core Cutting Machine HJX300-LLB is a special equipment for cutting silicon steel to make transformer iron core. This kind of transformer core cutting machine is one kind of step lap cut to length. The transformer core cutting machine’s transverse shear line adopts single side location and manual width adjustment. PLC control system is used to control the machine. The servo motor driven punching and cutting function is with high efficiency, high precision, low noise and low failure rate. The transformer core cutting machine features full function, high automation and easy operation.
Quick details of transformer core cutting machine
Main parameters of transformer core cutting machine
The standard specifications of HJX300-LLB is shown below, however, the machine can also be manufactured as requested.
| Technical Specifications | HJX300-LLB |
| Sheet thickness | 0.23 ~ 0.35 mm |
| Sheet width | 40 ~ 300 mm |
| Cutting length | 350 ~ 9999 mm |
| Feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.025° |
| Cutting length accuracy | ±0.1 mm |
| Cutting burring | ≤0.02 mm |
| Installation capacity | 13 kw |

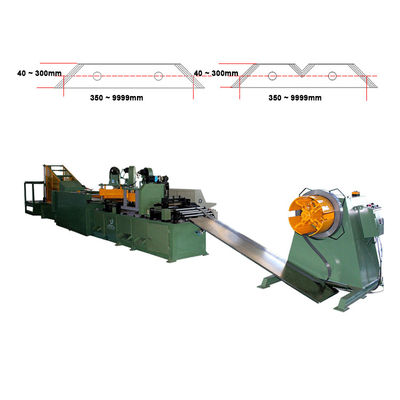

Fig 1: Transformer core cutting machine HJX300-LLB's full view
Fig 2: Transformer core cutting machine HJX300-LLB's side view
