Electric Motor Coil Winding Machine Adjustable Mold Wire Coil Winder

Adjustable Mold Wire Coil Winder Electric Motor Coil Winding Machine

Description of motor coil winding machine MW1200

Electric motor coil winding machine MW1200 is a special motor coil winder for winding wire coils. This kind of coils can be used to make motors and other similar products. The motor coil winding machine is provided with an adjustable mold and the length adjustable range is from 200mm to 1200mm, which can be suitable for many specifications of motor. The winding speed can be adjusted through a potentiometer on the board. The rotating direction can be switched through the foot pedal. It is very easy to operate the motor coil winding machine.

Quick details of motor coil winding machine MW1200

• 3KW motor providing strong pulling force
• 1400mm machine height
• Winding speed 0 ~ 40rpm
• Smooth running
• Adjustable blocks
• Simply structure

Main Parameters of motor coil winding machine MW1200

Typical standard specifications of motor coil winding machine MW1200 are shown below, however the motor coil windingn machine can also be manufactured as requested.

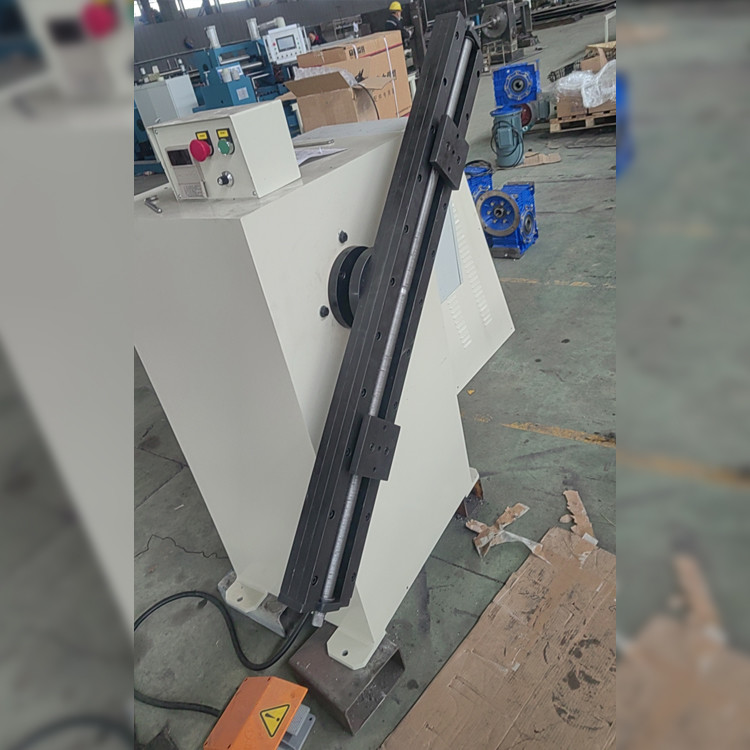

Fig 1: Motor coil winding machine MW1200's full view

Fig 2: Motor coil winding machine MW1200's control board
