High Torque Motor Coil Winding Machine Semi Automatic

High Torque Semi Automatic Wire Winder Motor Coil Winding Machine

Description of motor coil winding machine MW150

Motor coil winding machine MW150 is a special winding machine for winding motor coil. The motor coil winding machine is provided with a flange with diameter 150mm and mould can be mounted on the flange to winding coils. The motor coil winding machine can be used to wind different size wire according to the product requirements. The motor coil winding machine is provided with main strong steel frame, flange, foot pedal, counter, control board, winding motor, gear box, and electrical cabinet. The motor coil winding machine features strong force, high winding speed and easy to operate.

Quick details of motor coil winding machine MW150

• Slow starting
• Smooth running
• Big torque
• Fast winding speed
• Simply structure
• Easy operation

Main parameters of coil winding machine MW150

Typical standard specifications of coil winding machine MW150 are shown below, however these can be easily modified as requested.

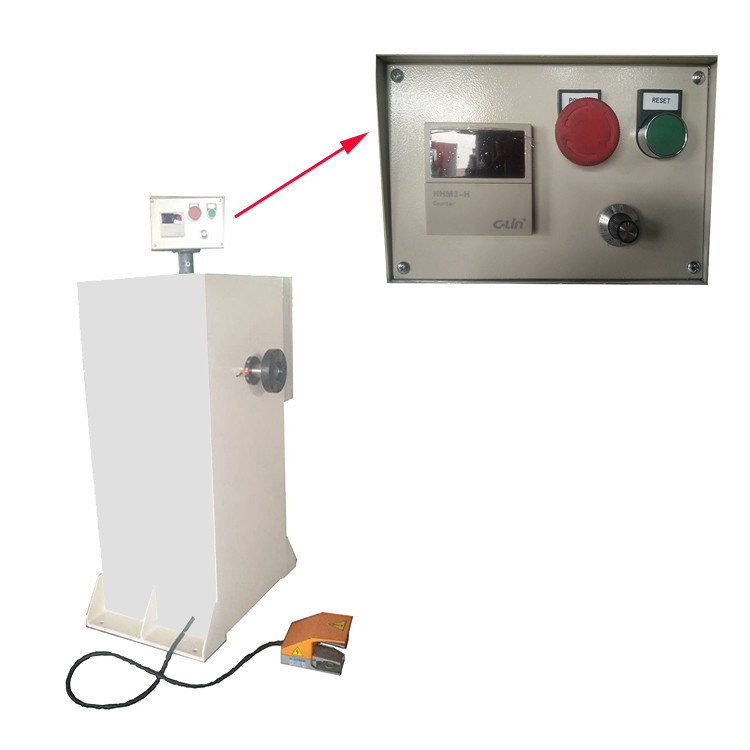

Fig 1: Motor coil winding machine MW150's full view

Fig 2: Motor coil winding machine MW150's controller
