Introduction of motor coil winding machine MW1500

Motor coil winding machine MW1500 is a special winder for winding motor coils. With a digital counter, the motor coil winding machine can counter the number of turns when winding. The motor coil winding machine is with a function of power off memory, that is to say, the counting number recorded and the parameters input can be saved in case of power off. The winding speed can be adjusted through a potentiometer on the board. The motor coil winding machine is provided with a foot pedal. The foot pedal can be used to run or stop the machine. The machine is equipped with adjustable movable blocks. The winding former can be fixed on the two movable blocks. The distance between the two blocks can be adjusted with rotating screw rod of the mold and the adjustment range is 200 ~1500mm.

Main components of motor coil winding machine MW1500

1.Main frame

2.Electric control cabinet

3.Foot pedal

Main parameters of motor coil winding machine MW1500

Typical standard specifications of motor coil winding machine MW1500 are shown below and the motor coil winding machine can also be manufactured as requested.

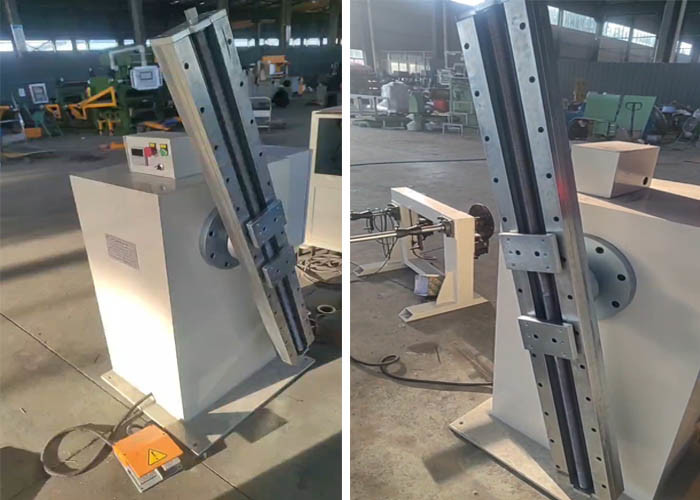

Fig 1: Motor coil winding machine MW1500's full view

Fig 2: Motor coil winding machine MW1500's control board
