11kw Coil Stretch Wrapping Machine For Making Transformer

1
MOQ
negotiable
Price
11kw Coil Stretch Wrapping Machine For Making Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Coil Stretching Machine
Application: Forming Coil
Stretching Range: 400 ~ 1500mm
Color: As Requested
One Side Width: 81mm
Power: 11kw
Warranty: 12 Months
Highlight:

11kw coil stretch wrapping machine

,

Transformer coil forming machine

,

1500mm coil stretch wrapping machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: TLS-1500
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Customized Machine Coil Stretching Machine for Making Transformer





Quick Detail:



  • Horizontal stroke 0 ~ 250mm
  • Straightening chuck stoke 400 ~ 1500mm
  • One coil side down range 0 ~ 100mm
  • Straightening chuck up 0 ~ 70mm
  • One year warranty



Description

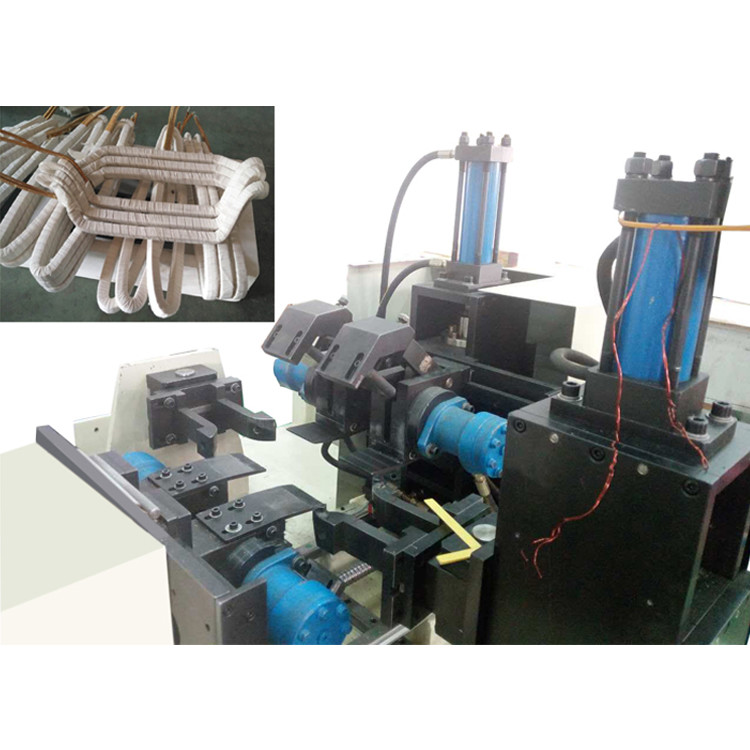

Coil stretching machine TLS-1500 is used to stretch coil, it can stretch the coil in horizontal directions, make one side of the coil down and make another side of the coil up.





Technical Parameters



Typical standard specifications of TLS-1500 are shown below, however these can be modified as requested.



1 Stroke of the chuck for straightening coil 400-1500 mm
2 Horizontal Stroke for Widening 0-250mm
3 Side of Coil Down 0-100mm
4 Straightening Chuck UP 0-70mm
5 Max Width of One Side 81mm
6 Total Power 11KW
