Wire Reel Transformer Manufacturing Equipment Winding Machine Coil Stand

1 set
MOQ
negotiable
Price
Wire Reel Transformer Manufacturing Equipment Winding Machine Coil Stand
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Coil Stand
Usage: Putting Wire Reel
Height: 900mm
Weight: 100kg
Shaft Diameter: 35mm
Shaft Length: 500mm
Highlight:

wire reel Transformer Manufacturing Equipment

,

900mm Coil Stand

,

100kg Transformer Manufacturing Equipment
Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: FXJ-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per year
Product Description

Transformer Manufacturing Equipment Winding Machine Coil Stand

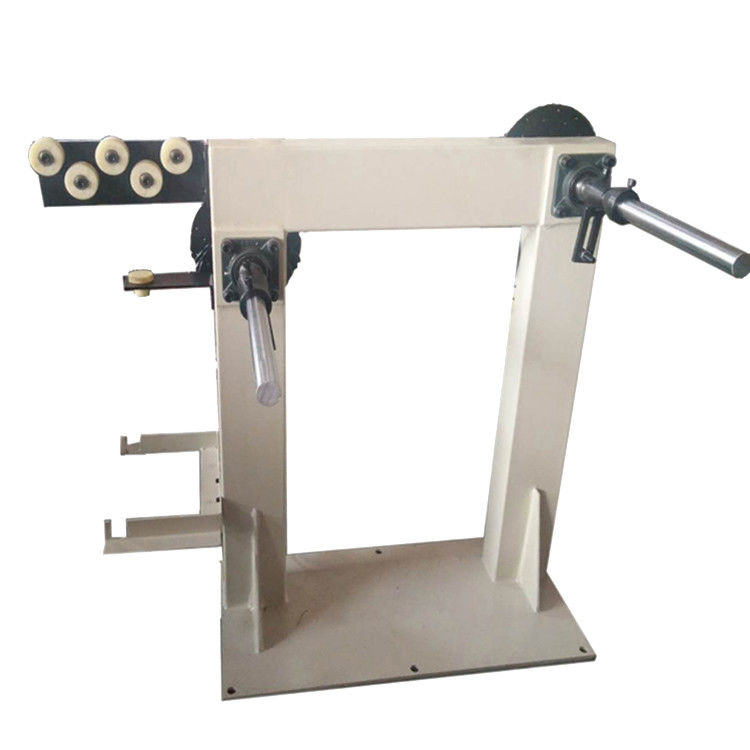

Introduction of coil stand FXJ-2



2-axial coil stand FXJ-2 is used to place the wire reel and feed wire for coil winding machines, The coil stand is provided with pneumatic tensioner to make the wire tight when winding.





Main Components:



1. Main frame

2. Shaft

3. Tensioner





Main Parameters



Typical standard specifications of FXJ-2 are shown below, however this can be easily modified as requested.



No. Item FXJ-2
1 One Spindle Center Height: 600mm
2 Another Spindle Center Height: 400mm
3 Max. Shaft Loading: 200KG
4 Shaft Length: 500mm
5 Shaft Diameter: 35mm
6 Horizontal Distance Between Shafts: 650mm
7 Weight: 100KG
8 Dimension(L*W*H): 900*800*650mm
