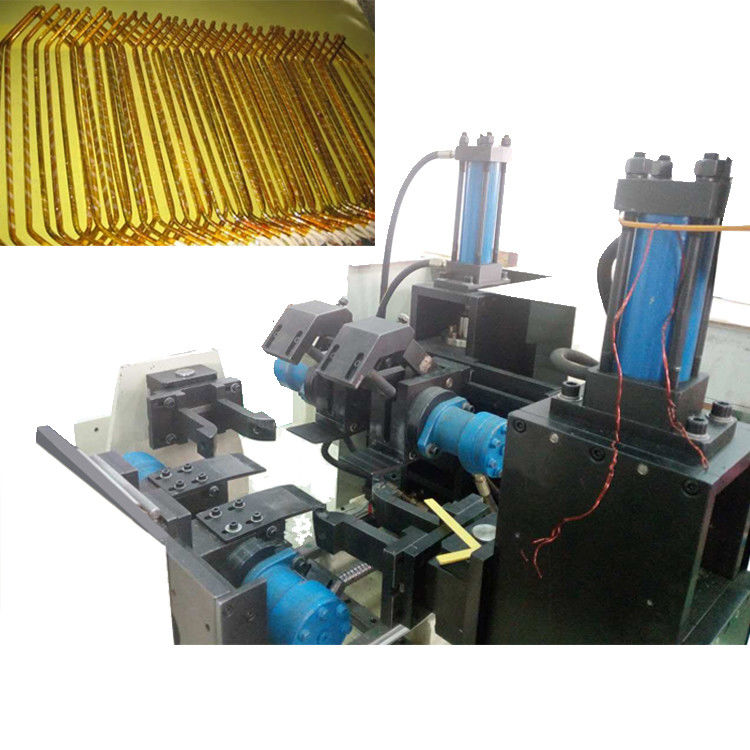

11kw Transformer Manufacturing Equipment Customized Stretching Coil Machine

11kw Transformer Manufacturing Equipment Customized Stretching Coil Machine

11kw Transformer Manufacturing Equipment Customized Stretching Coil Machine
11kw Transformer Manufacturing Equipment Customized Stretching Coil Machine

Large Image :  11kw Transformer Manufacturing Equipment Customized Stretching Coil Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: TLS-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Coil Stretching Machine Usage: Forming Coil
Stretching Range: 400 ~ 1500mm Machine Color: As Requested
One Side Width: 81mm Motor Power: 11kw
Warranty: 12 Months
High Light:

11kw Transformer Manufacturing Equipment

,

81mm coil forming machine

,

1500mm Transformer Manufacturing Equipment

Transformer Manufacturing Equipment Customized Stretching Coil Machine





Description of stretching machine TLS-1500



Coil stretching machine TLS-1500 is used to stretch coil for manufacturing transformer coil. The stretching machine can stretch the coil in horizontal directions to make one side of the coil down and another side of the coil up, which can meet the needs of manufacturing transformer.





Quick details of stretching machine TLS-1500



  • Maximum horizontal stroke 0 ~ 250mm
  • Straightening chuck stoke 400 ~ 1500mm
  • One coil side down range 0 ~ 100mm
  • Straightening chuck up 0 ~ 70mm
  • Customized color
  • One year warranty



Technical parameters of coil stretching machine



Typical standard specifications of TLS-1500 are shown below, however these can be modified as requested.



1 Chuck Stroke 400-1500 mm
2 Widen Stroke 0-250mm
3 Coil Side Down Range 0-100mm
4 Straightening Chuck UP 0-70mm
5 Max One Side Width 81mm
6 Total Power 11KW
