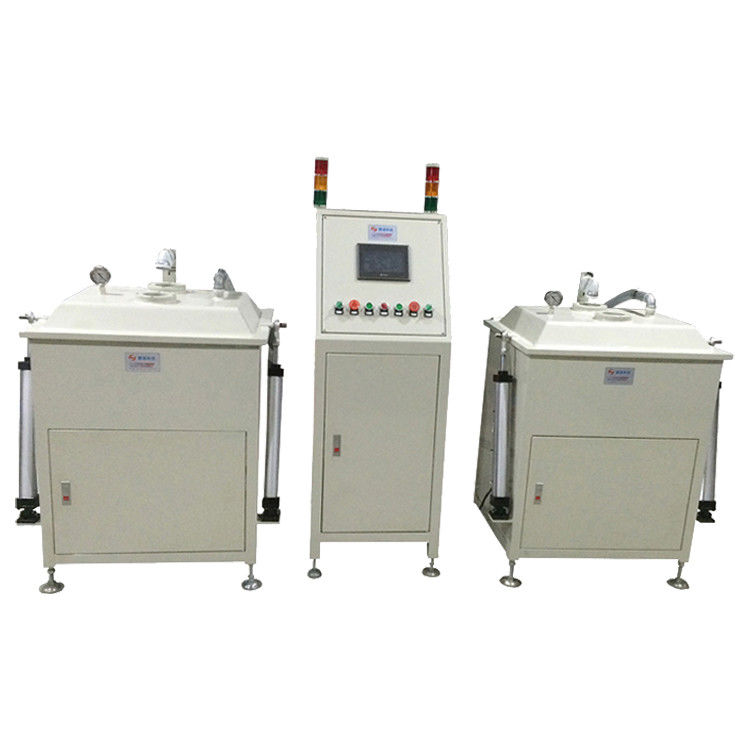

Description of vacuum pressure impregnation THY-Z03

1. Support the top cover with 50KG hydraulic rod. The top cover is sealed with silicone rubber and the cover is quickly clamped.

2. Adopting stepper motor drive precision ball screw with moving slot lifting type impregnation, preset lifting height (maximum stroke of sub-slot 60mm; displacement accuracy ±0.05mm)

3. The screw jack has high bearing capacity and high control precision. The PIN will not stick to the varnish, and there is no need for secondary tin plating.

4, PLC controller control, can be preset a variety of impregnation mode, with timely, appropriate elimination of bubble function;

5, automatic switch box cover, secondary automatic vacuum, save time and effort, environmental protection, energy saving, can achieve single-person multi-machine operation.

6. The whole groove is made of 10MM steel plate. Double glass observation window for viewing immersion at any time

7. Impregnation time can be set; with timing alarm, motor overload protection and phase loss protection function; exhaust filter recovery, with environmental protection, recycling double-effect function;
8. The product is stored up to 500, and the vacuum is intelligently pumped to achieve no bubbles and the impregnation effect is beautiful.

Dimensions of vacuum pressure impregnation THY-Z03

Internal dimensions of the box:L705*W540*H300mm

product tray :220*640*30mm

Lifting plate (to lift the varnish):L675*W515*H105mm

Single cylinder size:L950*W660*H1160mm

Control box size:L500*W540*H1300mm

take up space: L2600x W660x H1300mm

Dipping varnish height: 80mm (the height can be customized according to customer requirements)
