25Mpa Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine

25Mpa Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine

25Mpa Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine
25Mpa Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine

Large Image :  25Mpa Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: TYJ-100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Coil Pressing Machine Usage: Forming Coil
Motor Power: 5.5kw Height From Floor: 800mm
Throat Depth: 840mm Rated Pressure: 25Mpa
Color: As Requested Warranty: 12 Months
High Light:

STT Transformer Manufacturing Equipment

,

100T Coil Forming Pressing Machine

,

25Mpa Manufacturing Equipment

Transformer Manufacturing Equipment 100T Coil Forming Pressing Machine

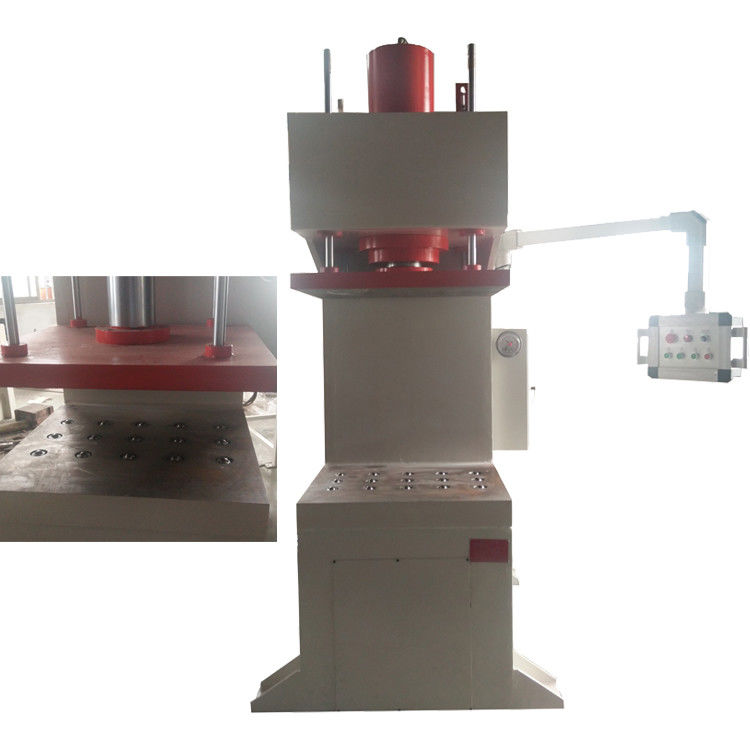

Description of pressing machine TYJ-100T



Coil forming pressing machine is mainly used to press and form wound coils. The pressing mahcine can provide maximum pressure 100T. The pressing machine can be used to form both coil and other items. With setting proper parameters, the pressing machine can meet different requirements of pressing.





Main Components



  • Machine’s frame
  • Oil cylinder for making big pressure.
  • Hydraulic system
  • Control system



Main parameters



Rated Pressure: 100T
Pressed Platform Size(LxW): 1200×900mm
Platform Height from Floor: 800mm
Throat Depth: 840 mm
Rated Pressure : 25 Mpa
Pressing Block Stroke: 0 ~ 600 mm
Pressing Block Moving Speed: 12 mm/ s max.
Motor Power: 5.5kw
