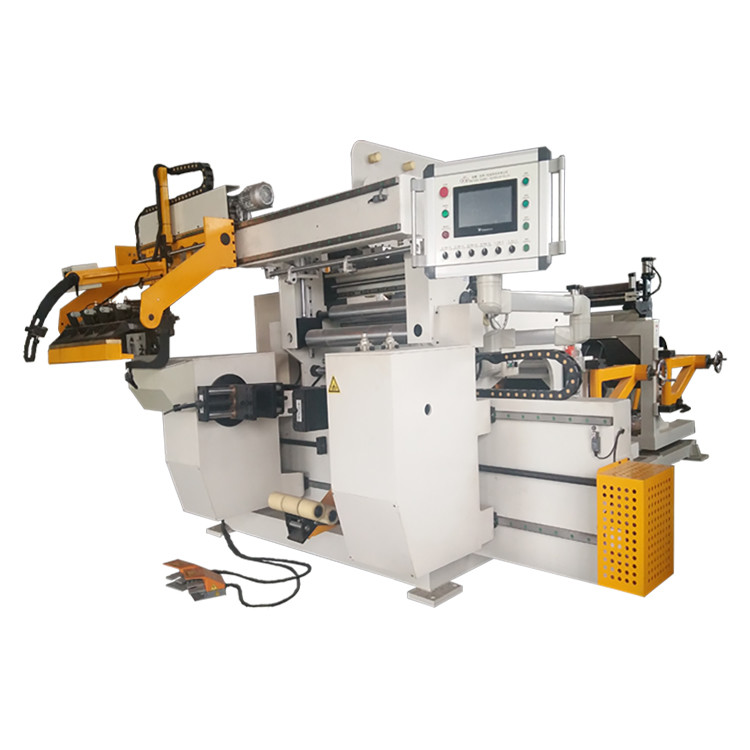

24rpm Reactor Copper Foil Coil Winding Machine Two Servo Motors Driving

Two Servo Motors Driving Clamped Core Reactor Copper Foil Winding Machine

Quick Detail:

• Two chucks
• Foil material ID 500mm
• Foil material OD 1000mm
• Winding speed 24rpm
• Winding power 11kw
• TIG welding

Description:

Two servo motors driving clamped core reactor copper foil winding machine BRJ800-2-2 is mainly used to wind reactor foil coil and other similar products. The copper foil winding machine is a core-clamping type foil winding machine, which adopts double servo motors to drive two ends, which makes two chucks have the same torque and ensures the drive head to wind synchronously. The copper foil winding machine can handle one or two layers of copper or aluminium foil conductor and one or two layers of insulation paper at the same time. With PLC control system, the copper foil winding machine can be operated easily.

Technical Parameters

Typical standard specifications of BRJ800-2-2 are shown below, however these can be easily modified as requested.
