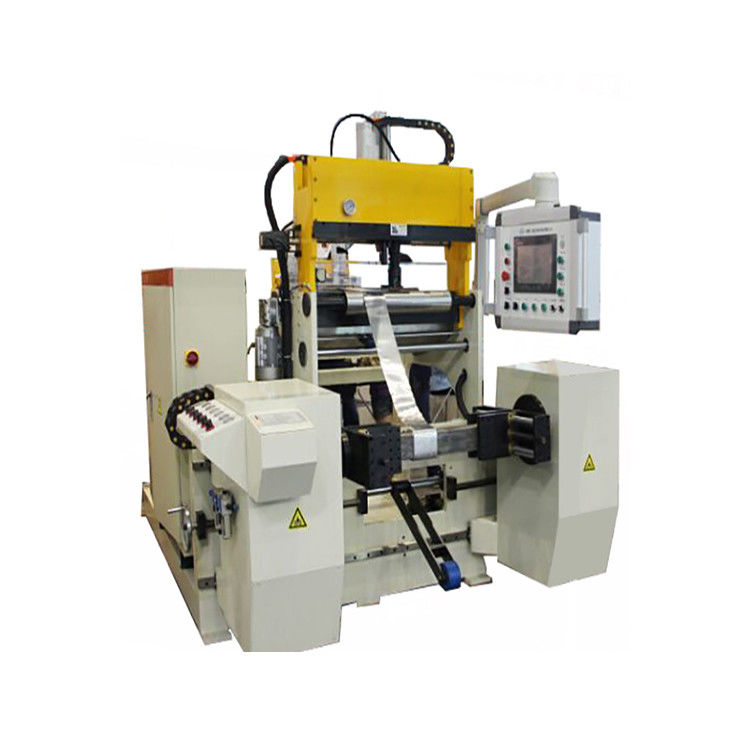

Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper

Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper

Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper
Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper

Large Image :  Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ300-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Reactor Foil Winding Machine Max. Foil Width: 300mm
Decoiler: 2 Pcs Welding Mode: Cold Pressure Welding
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Motor Power: 5.5kw Winding Speed: 35rpm
Color: Customized Warranty: 12 Months
High Light:

Copper Foil Winding Machine 300mm

,

35rpm cold welding machine

,

35rpm Copper Foil Winding Machine

Cold Welding Automatic Reactor Foil Winding Machine With 300mm Width Leaf Copper





Quick Detail:



  • Winding copper or aluminium foil
  • Foil material ID 500mm
  • Foil material OD 1000mm
  • Winding speed 60rpm
  • Winding power 4kw
  • Automatic cold welding
  • One year warranty





Description



Cold Welding Automatic Reactor Foil Winding Machine With 300mm Width Leaf Copper BRJ300-2-2 is a dedicated equipment for winding reactor foil coils and other similar products. This kind of foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. The foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.





Main Components:



1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system





Technical Parameters



Typical standard specifications of reactor foil winding machine BRJ300-2 are shown below, however these can be modified as requested.



Max. Foil Width: 300mm
Finished Coil OD. ( excl. Bus bar ): 600mm
Finished Coil OD. ( incl. Bus bar ): 700mm
Coil Shape: Circle, Oval and Rectangle etc.
Conductor Foil Material: Copper or aluminum
Cu Foil Material Thickness: 0.2-2.0mm
Al Foil Material Thickness: 0.3-3.0mm
Foil Material ID.: ≤ 500mm
Foil Material OD.: ≤ 1000mm
Conductor Decoiler Number: 2 pcs
Conductor Decoiler Length: 350mm
Conductor Decoiler Shaft: Dia. adjustable range: 420-520mm
Max Coil Weight: 1000kg
Rectifying Mode: Photoelectric sensing
Rectifying Deviation Precision: ±0.5mm
Cleaning Unit Control Mode pneumatic
Insulation Paper Decoiler Number: 1set
Insulation Paper Coil OD.: ≤ 400mm
Insulation Paper Coil ID.: 76mm
Insulation Decoiler Width 350mm
Insulation Paper Decoiler Shaft: Expandable (pneumatic open/close action)
Winding Speed: 0-35 RPM
Winding Power of Servo Motor: 5.5kw
Cold Welding Device: 1 set
Positioning Bus Bar Device: 1set
Electric Grinding Device: 1 set
Cold Welding Mould: 6 sets
Counting Turn Range: 0 - 9999.9
