| Product Name: | Foil Winding Machine | Function: | Winding Dry Transformer Coils |
|---|---|---|---|
| Cu Strip Thickness: | 0.2 - 2.0mm | Al Strip Thickness: | 0.3 - 3.0mm |
| Welding Mode: | TIG Welding | Machine Color: | As Requested |
| Machine Warranty: | 12 Months | ||
| High Light: | Electrical Transformer Foil Winding Machine,3.0mm electrical winding machine,STT 3.0mm Transformer Foil Winding Machine |
||
Electrical Programmable Cast Resin Transformer Copper Foil Winding Machine
Description of copper foil winding machine BRJ800-2
Cast resin transformer copper foil winding machine BRJ800-2 can be used to wind both copper foil and aluminium foil to make dry type transformer’s coil. The maximum width of the foil wound by the foil winding machine is 800mm. The foil winding machine can wind one or two layers of the foil and one or two layers of insulation paper. With TIG welding unit, the foil winding machine can weld foil and busbar together. PLC control system makes the copper foil winding machine be operated easily.
Quick Detail of copper foil winding machine
Technical Parameters of copper foil winding machine
Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.
| Foil width: | 200 ~ 800mm |
| Max. OD. of Finished Coil: | 800mm |
| Finished Coil Shape: | oval, circle and rectangular,etc. |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Diameter: | Adjustable range 400-520mm |
| Winding Mandrel Size: | 80×80×1150 mm |
| Welding Mode: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material Width: | 850mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

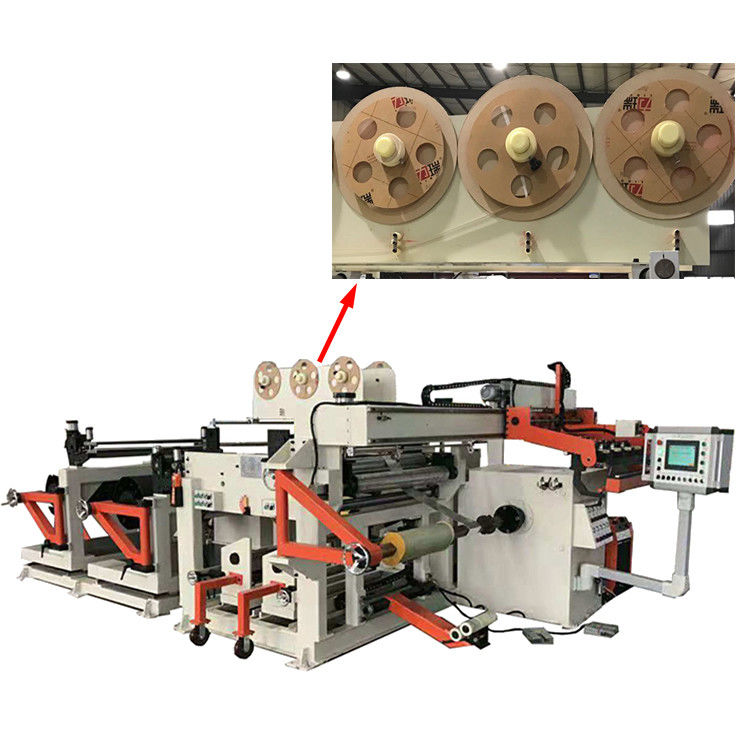

Fig 1: Copper foil winding machine BRJ800-2's front view
Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
