TIG Welding Low Voltage Winding Machine Transformer Copper Foil Winder

High Effective TIG Welding Low Voltage Transformer Copper Foil Winding Machine

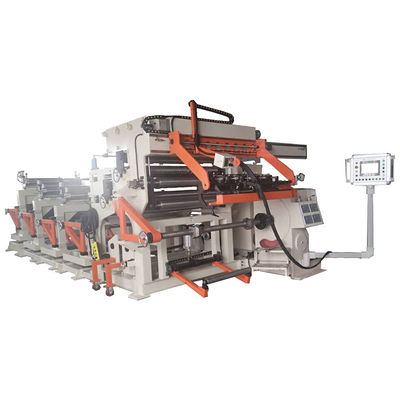

1) Description of copper foil winding machine BRJ1200-4

Low voltage transformer copper foil winding machine BRJ1200-4 can handle:

• Four layers of copper foil strip with thickness from 0.2 mm to 2.0mm
• Four layers of Aluminium foil strip with thickness from 0.3mm to 3.0 mm
• Maximum foil width 1200mm
• four layers of foil
• Two layers of insulation paper
• Big motor with 30kw

The transformer foil winding machine is provided with:

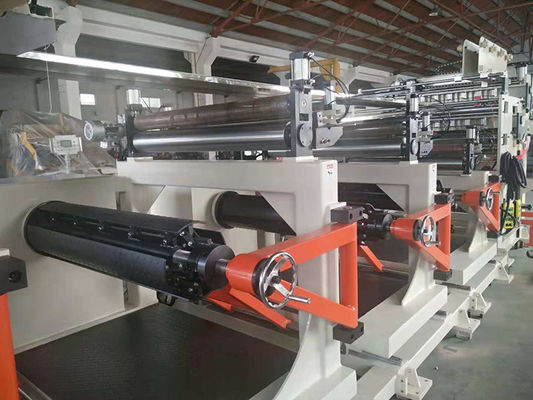

• four pieces of foil decoilers with pneumatic tension
• two insulation decoilers, which can provide tension through pneumatic brake system
• photoelectric sensors, which can rectify automatically when winding
• pressing rollers to make the foil not reverse when the machine stops winding.
• control system based on PLC to control the machine precisely
• touch screen to make the operation easy and intuitive
• Foot pedal, which can switch the rotating direction
• Big power motor with 30kw
• TIG welding unit


2) ​Main Components of copper foil winding machine

• Main frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Cleaning system
• Cutting system
• Edge alignment system
• Automatic welding unit
• Electronic control system


3) Technical Parameters of copper foil winding machine

Typical standard specifications of copper foil winding machine BRJ1200-4 are shown below, however these can be easily modified as requested.
