Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil

Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil

Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil
Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil

Large Image :  Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ1000-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: T/T, L/C
Detailed Product Description
Name: Reactor Foil Winding Machine Application: Winding Reactor Coils
Cu Strip Thickness: 0.2 - 2.0mm Al Strip Thickness: 0.3 - 3.0mm
Welding: TIG Welding Speed: 0.8m/min
Machine Color: As Requested Machine Warranty: 12 Months
High Light:

1000mm Copper Foil Winding Machine

,

TIG Reactor Coil Winding Machine

,

STT 3.0mm Copper Foil Winding Machine

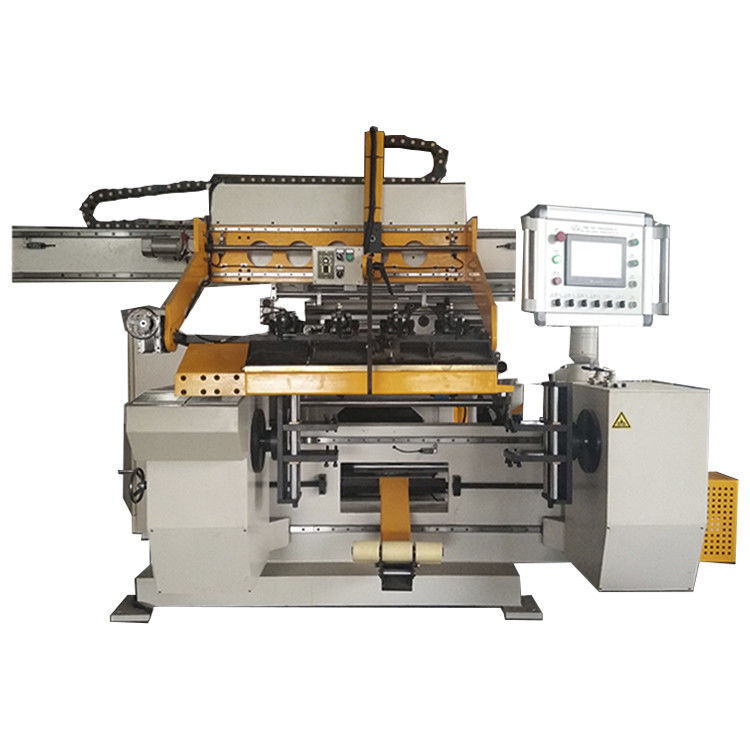

Programmable 1000mm Width Copper Foil Winding Machine Making Reactor Coil





Description of copper foil winding machine BRJ1000-2-2:



Copper foil winding machine BRJ1000-2-2 is mainly used to wind reactor foil coil and other similar products. The copper foil winding machine can handle the foil with maximum width 1000mm. With two chucks to clamp the iron core, the copper foil winding machine can wind two layers of foil and two layers of insulation paper at most. The control system based on PLC makes the copper foil winding machine run automatically according to the program. The copper foil winding machine features high automation, easy to operate and so on.





Quick details of copper foil winding machine:



  • Two chucks
  • Foil material ID 500mm
  • Foil material OD 1000mm
  • Rotating speed 20rpm
  • Main winding motor power 11kw
  • Automatic TIG welding unit



Technical parameters of copper foil winding machine



Typical standard specifications of BRJ1000-2-2 are shown below, however these can be easily modified as requested.

Foil width: 250-1000mm
Max. Finished Coil OD.: 1050mm
Finished Coil Shape: Round, Rectangular, Oval, etc.
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 1050mm
Foil Decoiler Diameter: Adjustable range 400-520mm
Max. Coil Weight: 1,000KG
Motor Power: 5.5KW*2
Max. Winding Speed: 20 rpm
Welding System: TIG
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 1050mm
Insulation Decoiler Shaft: pneumatic open/close action
Edge Alignment System: Photoelectric sensing
Control System: PLC
Touch Screen: 10 inches (254mm)
Counting Range: 0 - 9999.9
