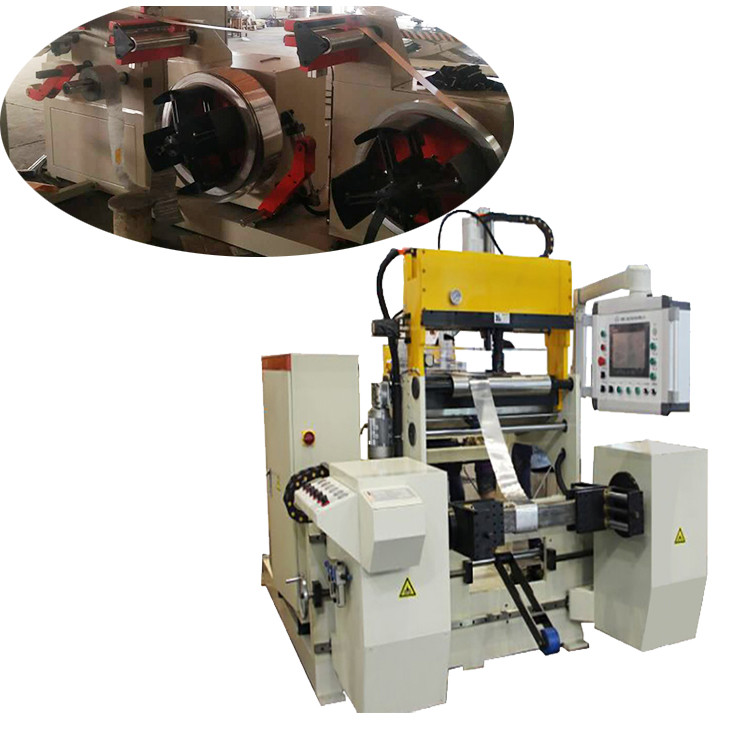

Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 can be used to wind one or two layers of foil and one or two layers of insulation paper. The foil can be copper or aluminium foil. This kind of copper foil winding machine is core clamping machine. The foil can be wound on iron core directly. The two servo motors are adopted to drive two chucks to make them have a same torque. With the cold pressure welding unit, the foil winding machine can weld different conductor together, that is to say, the machine can weld not only cu foil and cu bus bar or al foil and al bus bar, but also cu foil and al bus bar or al foil and cu bus bar together. The foil decoilers are suitable for placing the conductor material with inner diameter 500mm and outer diameter 1000mm. The machine features easy operating and so on.

Main components of copper foil winding machine BRJ300-2-2

1. Main frame

2. Foil decoilers,

3. Foil feeder

4. Pressing roller

5. Main winding unit

6. PLC based control system

7. Pneumatic system

8. Cold welding unit, with six pieces of mold for different specifications of foil

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of BRJ300-2-2 are shown below, however these can be easily modified as requested.
