Automatic Conductor Wire And Copper Foil Winding Machine High Effective

1 set
MOQ
negotiable
Price
Automatic Conductor Wire And Copper Foil Winding Machine High Effective
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Coil & Foil Winding Machine
Usage: Making Reactor Coil
Al Foil Thickness: 0.3 ~ 3.0mm
Cu Foil Thickness: 0.2 ~ 2.0mm
Round Wire: Ø 0.3 ~ 5.0mm
Max Flat Wire: 5 X12mm
Color: Optional
Warranty: 1 Year
Highlight:

Copper Foil Winding Machine Automatic

,

Conductor Wire Copper Foil Winding Machine

,

High Effective Copper Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ400-2-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

High Effective Automatic Conductor Wire and Copper Foil Winding Machine





Description of copper foil winding machine BRJ400-2-2



Copper foil winding machine BRJ400-2 can be used to wind both foil and wire. The copper foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. The machine can be also used to wind wire with maximum winding width 400mm. The machine is provided with two sets of operating interfaces, one is for winding foil coil, another is for winding wire coil. The two sets of interfaces can be switched easily through the touch screen.





Technical Parameter of copper foil winding machine BRJ400-2-2



Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below, however the foil winding machine can also be manufactured as requested.

ITEM BRJ400-2-2
Process Foil Coil Parameter
Max foil width: 400mm
Max Rotating Diameter: Ø600mm
Coil shape: oval, round, rectangle
Foil Material Parameter
Conductor material: Copper / Aluminum foil
Foil strip width: 400mm
Al foil thickness: 0.3～3.0 mm
Cu foil thickness: 0.2～2.0 mm
Foil Roll ID.: 500mm
Maximum Foil Roll OD.: 1000mm
Foil decoiler number: 2 sets
Foil decoiler length: 450mm
Foil decoiler expansion range: Ø420~520mm (suitable for placing foil material with ID 500mm)
Max foil decoiler capacity: 750kg
Alignment Device
Alignment method: Photoelectric automatic correction
Alignment precision: ±0.5mm
Winding Device
Winding speed: 0~35rpm
Winding power: 8KW
Speed control: Variable-frequency stepless speed control
Core axis holder: Two chucks
Center height: 900mm
Insulation Paper Decoiler
Insulation axis: 2 sets
Maximum layer insulation roll OD: Ø400mm
Layer insulation roll ID: Ø76mm
Lay insulation width: ≤450mm
Decoiling axis: pneumatic
PLC Control System
Countering range: 0.0~9999.9
Countering precision: 0.1 circle
Function: Segmented input, reversible, power failure memory, etc.
For Wire coil winding
Max. wound coil OD.: 600mm
Maximum Wire Winding Width: 400mm
Round Wire Size:

Ø 0.3 ~ 5.0mm
Maximum Flat Wire Size: 5x12mm
Maximum Winding Speed: 100rpm

Automatic Conductor Wire And Copper Foil Winding Machine High Effective 0

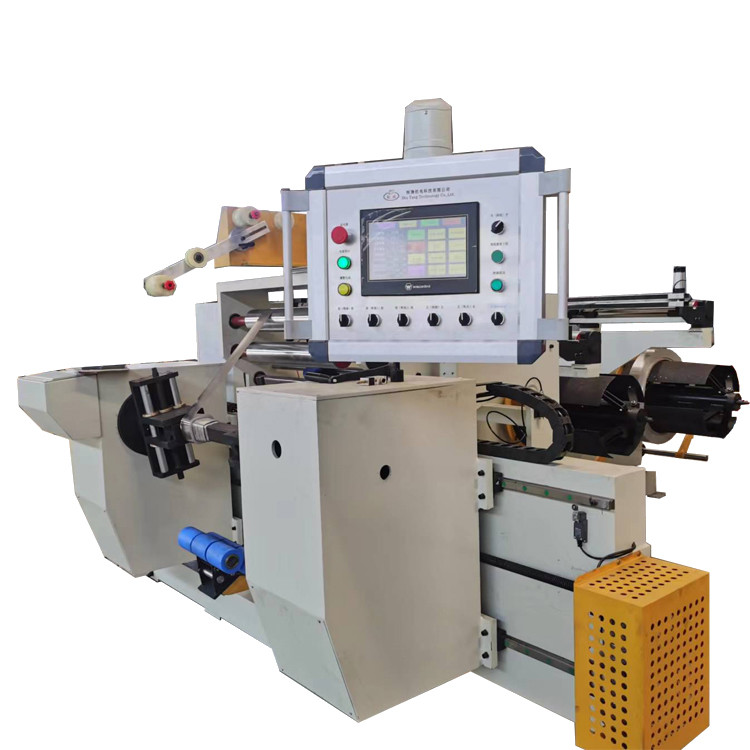

Fig 1: Copper foil winding machine BRJ400-2-2's front view



Automatic Conductor Wire And Copper Foil Winding Machine High Effective 1

Fig 2: Copper foil winding machine BRJ400-2-2's foil decoiler



Automatic Conductor Wire And Copper Foil Winding Machine High Effective 2Automatic Conductor Wire And Copper Foil Winding Machine High Effective 3Automatic Conductor Wire And Copper Foil Winding Machine High Effective 4Automatic Conductor Wire And Copper Foil Winding Machine High Effective 5Automatic Conductor Wire And Copper Foil Winding Machine High Effective 6Automatic Conductor Wire And Copper Foil Winding Machine High Effective 7Automatic Conductor Wire And Copper Foil Winding Machine High Effective 8Automatic Conductor Wire And Copper Foil Winding Machine High Effective 9Automatic Conductor Wire And Copper Foil Winding Machine High Effective 10
