Description of copper foil winding machine BRJ800-2-2

Copper foil winding machine BRJ800-2-2 is one special foil winding machine for winding copper or aluminium foil to make reactor coils and other similar products. The copper foil winding machine is provided with two chucks for clamping iron core and the copper or aluminium foil can be wound on the core directly. The two chucks are driven by two servo motors, which guarantees the two chucks to have the same torque. With PLC control system and user friendly interface of the touch screen, the copper foil winding machine can be operated easily.

Quick details of copper foil winding machine BRJ800-2-2

• Two chucks for clamping the iron core
• Supply foil material ID 500mm
• Maximum supply foil material OD 1000mm
• Winding speed 0 ~ 20rpm
• Winding power 11kw
• TIG welding

Technical parameters of copper foil winding machine BRJ800-2-2

Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

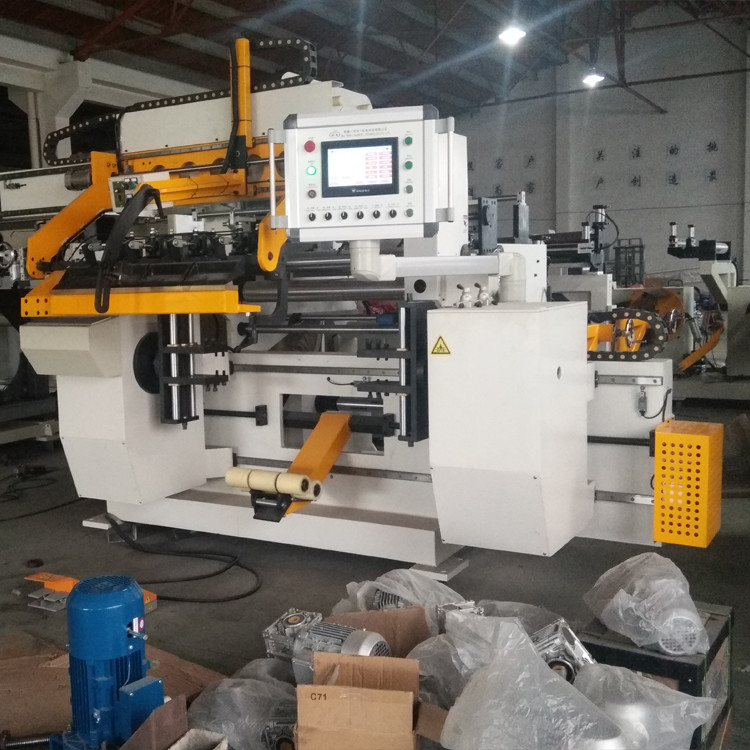

Fig 1: Copper foil winding machine BRJ800-2-2's front view

Fig 2: Copper foil winding machine BRJ800-2-2's back view
