Description of copper foil winding machine BRJ400-2-2

Copper foil winding machine BRJ400-2-2 is one kind of reactor foil winding machine. With two foil decoilers, the copper foil winding machine can wind one or two layers of foil. The copper foil winding machine is provided with two insulation paper shaft, which makes the winding machine can wind one or two layers of insulation paper. With two chucks, the copper foil winding machine can clamp a core and wind the foil on the core directly. The copper foil winding machine features smooth running and easy operation etc.

Technical Parameter of copper foil winding machine BRJ400-2-2

Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below and the foil winding machine can also be manufactured as requested.

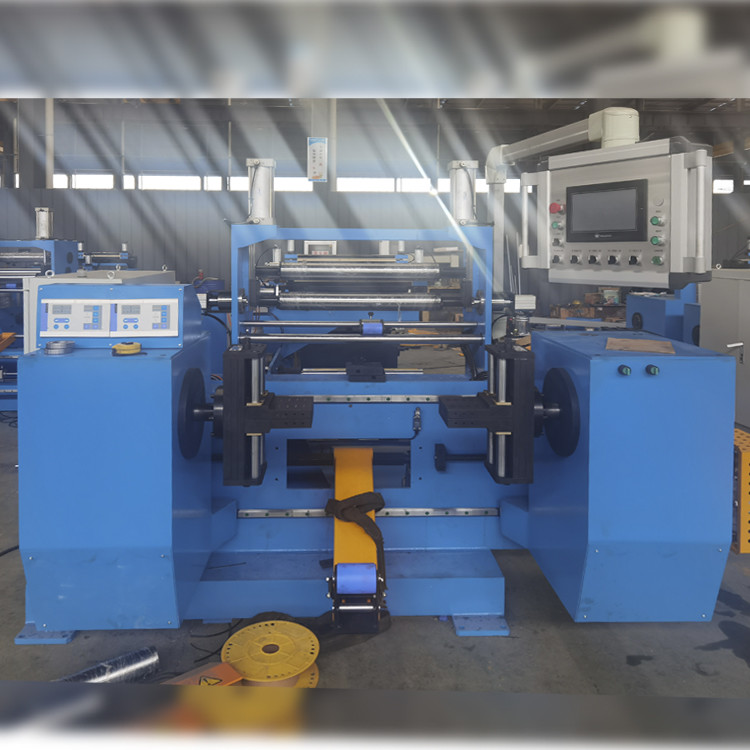

Fig 1: Copper foil winding machine BRJ400-2-2's front view


Fig 2: Copper foil winding machine BRJ400-2-2's back view
