Automatic Reactor Conductor Foils Winder PLC Control

Automatic PLC Control Conductor Foils Winder Reactor Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is one of conductor foil winding equipment for winding reactor foil coils and other similar products. The copper foil winding machine is core clamping type foil winding machine. The two chucks of the copper foil winding machine are driven by servo motors, which makes the two winding stocks have the same torque. This kind of copper foil winding machine can wind one or two layers of foil conductor with thickness 0.2mm ~ 2mm and aluminium foil with thickness 0.3mm ~ 3mm. Two photoelectric sensors are adopted to correct the position of the foil to make the foil have a proper position when winding, which guarantees the wound foil coil’s edge neat. With the control system based on PLC and a touch screen, the copper foil winding machine can be operated easily. All parameters of the copper foil winding machine can be input through the touch screen. The copper foil winding machine features slow starting, big torque, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

• Two servo motors driving
• Two chucks clamping iron core
• Foil material ID 500mm
• Maximum foil material OD 1000mm
• Maximum winding speed 26rpm
• Winding power 11kw
• TIG welding
• Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

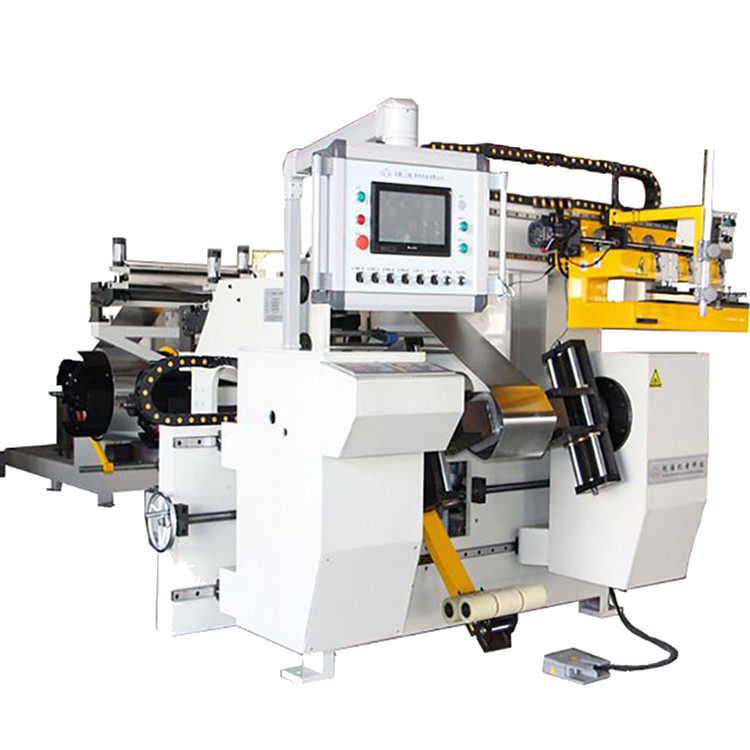

Fig 1: Copper foil winding machine BRJ600-2-2's front view

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
