Automatic Reactor Copper Foil Winding Machine Sheet Winder

Factory Direct Sales Sheet Winder Reactor Copper Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is a professional equipment for winding foils onto reactor cores directly. This kind of copper foil winding machine can wind both copper foil and aluminium foil . One iron core is clamped by two chucks of the copper foil winding machine and the two chucks are driven by two motors separately, which guarantees the the same torque when winding. The copper foil winding machine’s control system is based on PLC. The copper foil winding machine features easy operation, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

• Two servo motors driving
• Two chucks clamping iron core
• Foil material ID 500mm
• Maximum foil material OD 1000mm
• Maximum winding speed 26rpm
• Winding power 11kw
• TIG welding
• Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.

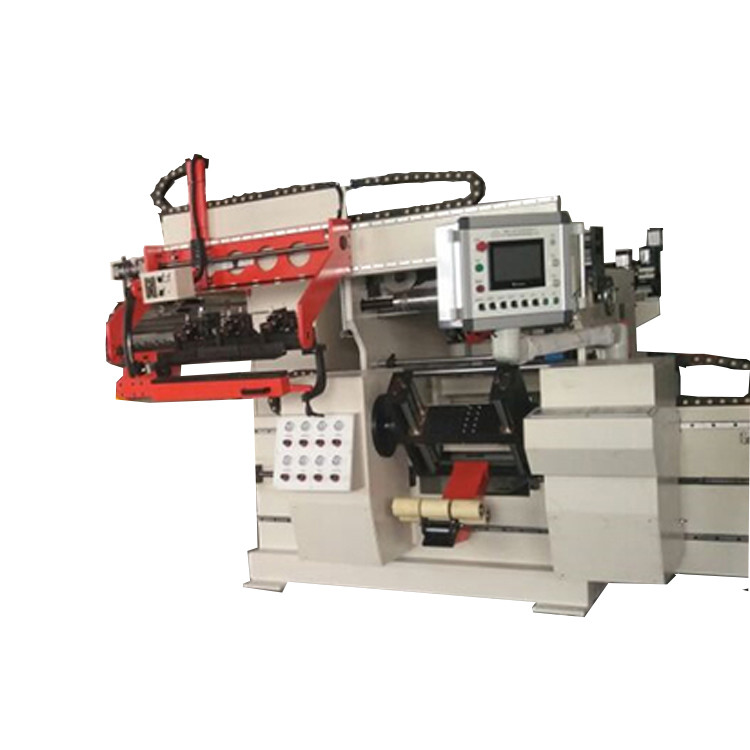

Fig 1: Copper foil winding machine BRJ600-2-2's front view

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
