Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine

1 set
MOQ
negotiation
Price
Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Copper Foil Winding Machine
Function: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm
Al Foil Thickness: 0.3 ~ 3.0mm
Color: As Requested
Warranty Period: 12 Months
Rotating Speed: 0 ~ 26 Rpm
Power: 8kw
Highlight:

Automatic Reactor Copper Foil Winding Machine

,

PLC Control Copper Foil Winding Machine

,

Reactor Copper Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ400-2-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine


Description of copper foil winding machine BRJ400-2-2

Copper foil winding machine BRJ400-2-2 is one kind of conductor foil winding machine. The copper foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. The copper foil winding machine is provided with two chucks, which can be used to clamp iron core and the conductor foil can be wound on the core directly, this coils can be sued to make reactor.


Technical Parameter of copper foil winding machine BRJ400-2-2

Typical standard specifications of copper foil winding machine BRJ400-2-2 are shown below and the foil winding machine can also be manufactured as requested.

Max foil width:400mm
Max Rotating Diameter:Ø600mm
Coil shape:oval, round, rectangle
Conductor material:Copper / Aluminum foil
Al foil thickness:0.3～3.0 mm
Cu foil thickness:0.2～2.0 mm
Foil Roll ID.:500mm
Foil decoiler number:2 sets
Foil decoiler expansion range:Ø420~520mm
Max foil decoiler capacity:750kg
Winding speed:0~26rpm
Winding power:8KW
Core axis holder:Two chucks
Insulation axis:2 sets
Maximum layer insulation roll OD:Ø400mm
Layer insulation roll ID:Ø76mm
Lay insulation width:≤450mm
Countering range:0.0~9999.9


Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 0

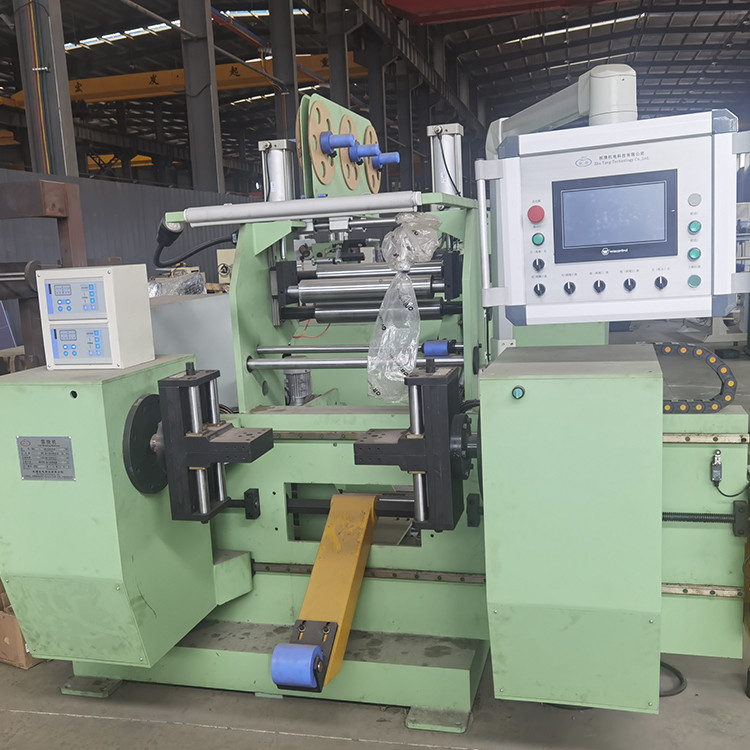

Fig 1: Copper foil winding machine BRJ800-2-2's front view

Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 1
Fig 2: Copper foil winding machine BRJ800-2-2's back view

Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 2Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 3
Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 4Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 5Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 6Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 7Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 8Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 9Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 10Automatic Reactor Foil Winding Machine PLC Control Copper Foil Winding Machine 11
