Automatic Transformer Core Cutter Machine With Silicon Steel

Automatic Core Cutting Machine To Make Transformer Core Center Leg With Silicon Steel

Description of core cutting machine ZZ400

Automatic core cutting machine ZZ400 is a professional cutting equipment for cutting silicon steel strip to make center leg of transformer core. The core cutting machine can cut the silicon steel with thickness from 0.2mm to 0.35mm and maximum width 400mm. The cutting machine is provided with a decoiler, which can be used to put supply silicon steel coil with inner diameter 500mm. The maximum capacity of the decoiler is 1500kgs. The feeding speed of the cutting machine is 180m/min. With one 14kw motor, the core cutting machine is with big pulling force. The cutting machine features running smoothly, easy operation and so on.

Quick details of automatic core cutting machine ZZ400

• Silicon steel thickness 0.2 ~ 0.35mm
• Silicon steel width 40 ~ 300mm
• Cutting speed 180m/min
• Motor power 14kw

Technical parameters of automatic core cutting machine ZZ400

Typical standard specifications of the cutting machine ZZ400 are shown below, however, the cutting machine can also be manufactured as requested.

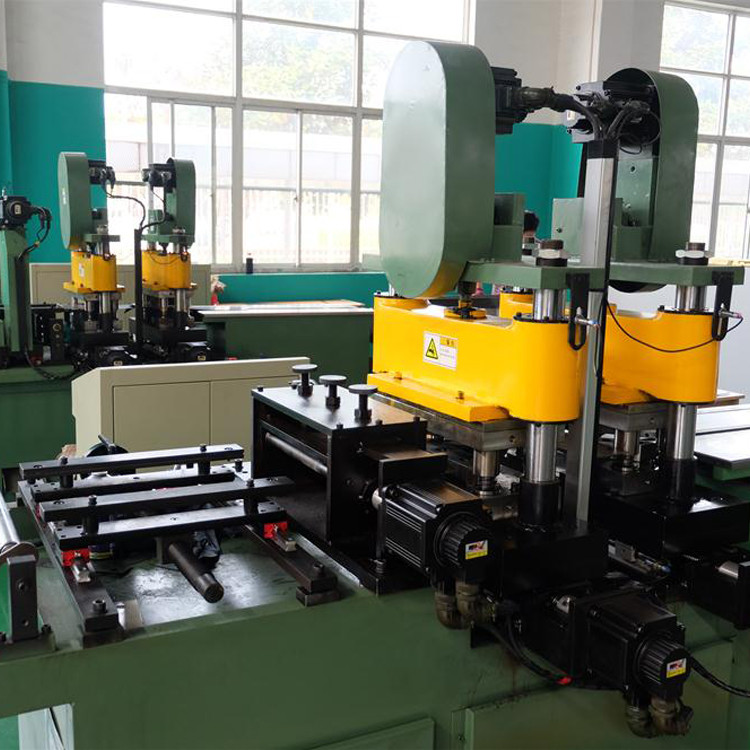

Fig 1: Core cutting machine ZZ400's full view

Fig 2: Core cutting machine ZZ400's cutter unit
