Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length

Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length

Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length
Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length

Large Image :  Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Core Cutting Machines Application: Cutting Silicon Steel Sheet
Sheet Width: 25-300mm Sheet Thickness: 0.23 ~ 0.5mm
Cutting Speed: 120m/min Motor Power: 8kw
Color: As Requested Warranty Period: 12 Months
High Light:

8kw Automatic Core Cutting Machine

,

300mm automatic core cutter

,

120m/min Automatic Core Cutting Machine

Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length





Description of automatic core cutting machine DHJ300



Automatic core cutting machine DHJ300 is mainly used to cut silicon steel for making reactor core, which can punch holes on the core automatically if needing. The actions of cutting and punching of the automatic core cutting machine are driven by servo motors, which guarantees the accuracy of the actions. The shearing blade is made of HRC88 ~ 90 hardness steel and can cut the silicon steel more than 5 million times before regrinding. It is very easy to operate the core cutting machine through a touch screen.





Quick details of automatic core cutting machine DHJ300



  • Sheet thickness 0.23 ~ 0.35mm
  • Sheet width 40 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Motor power 8kw
  • Warranty period 12 months





Main parameters of automatic core cutting machine DHJ300



Typical standard specifications of DHJ300 are shown below, however the automatic core cutting machine can also be manufactured as requested.

1 Platform Height from Floor: 850mm
2 Decoiler Expanding: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Sheet Thickness: 0.23 ~ 0.35mm
5 Sheet Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Burr After Cutting: Less than 0.02mm
10 AC Motor Power: 8kw



Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 0

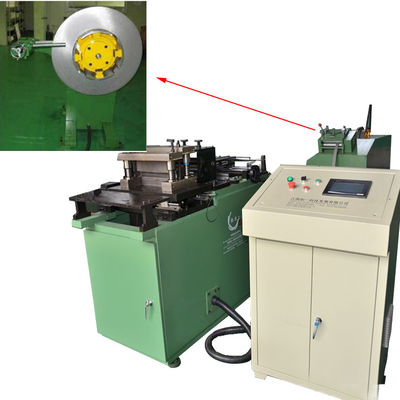

Fig 1: Automatic core cutting machine DHJ300's full view



Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 1

Fig 2: Automatic core cutting machine DHJ300's decoiler

Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 2Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 3Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 4Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 5Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 6Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 7Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 8Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 9Automatic Core Cutting Machine Making Reactor Core Silicon Steel Cut To Length 10
