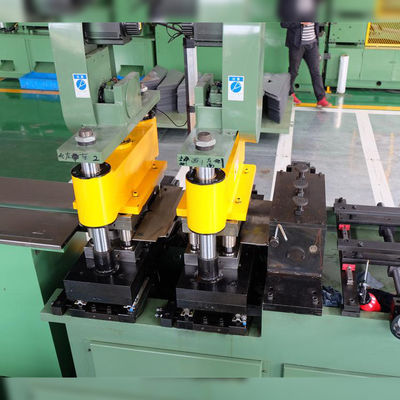

Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core

Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core

Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core
Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core

Large Image :  Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ300-BK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Cutting Machines Function: Making Transformer Center Leg
Sheet Width: 40 ~ 300mm Sheet Thickness: 0.23 ~ 0.35mm
Feeding Speed: 180m/min Motor Power: 14kw
Color: Customizable Warranty Period: 12 Months
High Light:

Transformer Core Cutting Machine PLC Control

,

Auto Transformer Core Cutting Machine

,

Customizable Transformer Core Cutting Machine

Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core





Description of transformer core cutting machine ZZ300-BK



Transformer core cutting machine ZZ300-BK is one step lap type cutting machine for cutting silicon steel to make transformer core center legs. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm and punch holes on the sheet. With different parameters input in a touch screen, the transformer core cutting machine can be used to cut different shapes of the core legs, for instance, the equilateral core limb, eccentric center core limb and so on. With PLC control system and a touch screen, it is very easy to operate the transformer core cutting machine.





Quick details of transformer core cutting machine ZZ300-BK

  • Cutting sheet thickness 0.2 ~ 0.35mm
  • Cutting sheet width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw



Technical parameters of transformer core cutting machine ZZ300-BK



Typical standard specifications of transformer core cutting machine ZZ300-BK are shown below, however, the transformer core cutting machine can be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Cutting Thickness: 0.2~‌0.35mm
Cutting Width: 40~300mm
Cutting Length: 150~2500mm
Feeding Speed: 0~180m/min
Total Power: 14Kw



Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 0

Fig 1: Automatic core cutting machine ZZ300's full view



Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 1

Fig 2: Automatic core cutting machine ZZ300's side view



Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 2Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 3Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 4Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 5

Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 6Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 7Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 8Automatic Core Cutting Machine Making Step Lap Center Leg For Transformer Core 9
