| Name: | Transformer Core Cutting Machines | Function: | Making Transformer Cores |
|---|---|---|---|
| Sheet Cut Width: | 40-400mm | Sheet Cut Thickness: | 0.23 ~ 0.35mm |
| Feeding Speed: | 120m/min | Motor Power: | 14.5kw |
| Color: | Customizable | Warranty Period: | 12 Months |
| High Light: | Silicon Steel Transformer Core Cutting Machine,transformer core machine Two Cutting,STT Transformer Core Cutting Machine |
||
Two Cutting Two Punching Silicon Steel Transformer Automatic Core Cutting Machine
Brief introduction of automatic core cutting machine HJX400-LL
Automatic core cutting machine HJX400-LL is a special equipment for cutting silicon steel to make transformer iron core. The core cutting machine is with many functions, such as single-side location and width adjusted manually, etc. Control system is based on PLC, which makes the machine programmable. Feeding system is driven by servo motor, which guarantees the precision and the liability of the action. The functions of two cutting and two punching makes the cut core more choices. The core cutting machine features high speed, high automation and so on.
Main parameters of core cutting machine HJX400-LL
The standard specifications of core cutting machine HJX400-LL is shown below, however, the specifications can be modified as requested.
| Technical Specifications | HJX400-LL |
| Cut steel thickness | 0.2-0.35 mm |
| Cut steel width | 40-400 mm |
| Cut steel length | 350-9999 mm |
| Feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.05° |
| Cutting length accuracy | ±0.1 mm |
| Cutting burring | ≤0.02 mm |
| Motor power | 12.5 kw |

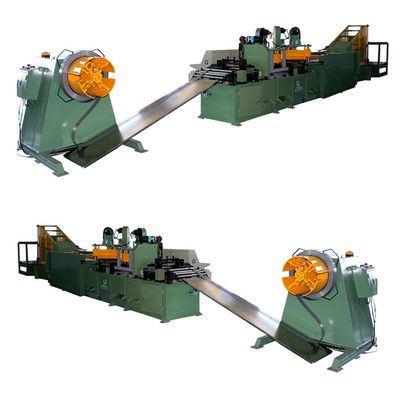

Fig 1: Automatic core cutting machine HJX400-LL's front view
Fig 2: Automatic core cutting machine HJX400-LL's side view
