Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core

1 set
MOQ
negotiable
Price
Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Name: Core Cutting Machines
Application: Making Transformer Cores
Cutting Width: 40-400mm
Sheet Thickness: 0.23 ~ 0.35mm
Cutting Speed: 120m/min
Motor Power: 14.5kw
Color: Customizable
Warranty Period: 12 Months
Highlight:

Two Punching transformer core cutting machine

,

120m/min core cutting machines

,

Two Cutting transformer core cutting machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: HJX400-LL
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Two Cutting Two Punching Cutting Machine Making Transformer Core





Description of cutting machine HJX400-LL



Two cutting and two punching cutting machine HJX400-LL is for cutting silicon steel strip to make transformer iron core. The cutting machine ‘s transverse shear line adopts single-side location and the cutting width can be adjusted manually. Servo motor are adopted to drive punching and cutting actions.





Quick details of cutting machine HJX400-LL



  • Sheet thickness 0.2 ~ 0.35mm
  • Cutting width 40 ~ 400mm
  • Cutting speed 120m/min
  • Motor power 12.5kw
  • 12 months warranty period
  • Customized color



Main parameters of cutting machine HJX400-LLL



The standard specifications of automatic core cutting machine HJX400-LL is shown below, however, the automatic core cutting machine can also be manufactured as requested.

Technical Specifications HJX400-LL
Sheet thickness 0.2-0.35 mm
Cutting width 40-400 mm
Cutting length 350-9999 mm
Cutting speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring length ≤0.02 mm
Power 12.5 kw



Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 0

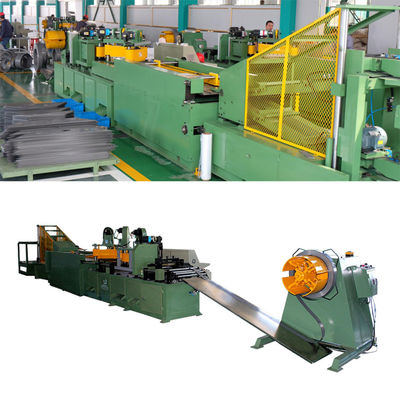

Fig 1: Automatic core cutting machine HJX400-LL's full view



Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 1

Fig 2: Automatic core cutting machine HJX400-LL's side view



Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 2Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 3Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 4Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 5Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 6Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 7Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 8Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 9Two Cutting Two Punching Transformer Core Cutting Machine Making Transformer Core 10
