Introduction of transformer core cutting machine HJX400-LLB

Transformer core cutting machine HJX400-LLB is a special equipment for cutting silicon steel sheet to make transformer core. The machine is with two cutting and two punching functions to make the core with a special shape. Servo motor is adopted to drive the cutting and punching actions, which guarantees the precision of the actions. The machine is controlled by PLC based control system. Moreover, the machine is with two types, one is common type, another is step lap type. With HMI, it is very easy to operate the machine.

Main components of transformer core cutting machine HJX400-LLB

• Two-end dereeler, hydraulic
• Slipping feed device
• Feeder
• Punching unit
• Shearing unit
• Outlet platform
• Width adjusting system
• Pneumatic system
• Electric control system

Technical parameters of transformer core cutting machine HJX400-LLB

Typical standard specifications of HJX400-LLB are shown below, however, these can be easily modified as requested.

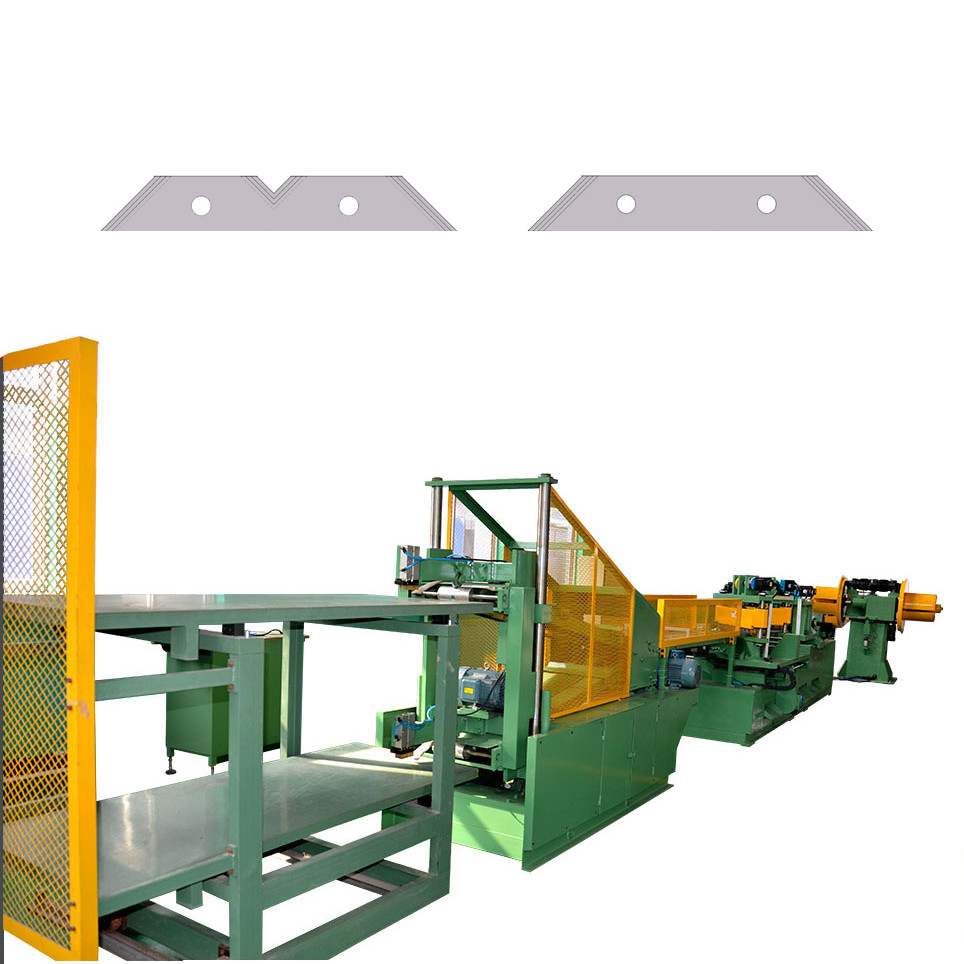

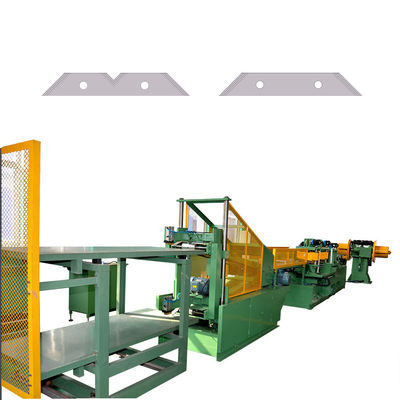

Fig 1:Cut to length line HJX400-LLB's side view

Fig 2: Cut to length line HJX400-LLB's coil dereeler
