Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw

Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw

Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw
Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw

Large Image :  Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX300-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machine Function: Making Transformer Core
Sheet Thickness: 0.23 ~ 0.35mm Sheet Width: 40 ~300mm
Power: 11kw Warranty: One Year
High Light:

automatic core cutter 11kw

,

Two Cutting Power Core Cutting Machine

,

Two Punching automatic core cutter

Automatic Two Cutting Two Punching Power Transformer Core Cutting Machine





Description of transformer core cutting machine HJX300-LL



Two cutting two punching power transformer Core Cutting Machine HJX300-LL is a professional equipment for cutting silicon steel to make transformer iron core. The transformer core cutting machine’s transverse shear line adopts single side location and manual width adjustment. Based on PLC, the control system control the machine automatically. The punching and cutting actions of the transformer core cutting machine are driven by a servo motor with high efficiency, high precision, low noise and low failure rate. The transformer core cutting machine features full function, high automation and easy operation.





Quick details of transformer core cutting machine



  • Cutting thickness 0.2 ~ 0.35mm
  • Cutting width 40 ~ 300mm
  • Feeding speed 120m/min
  • Motor power 11kw
  • Color as requested
  • 12 months warranty





Main parameters of transformer core cutting machine



The standard specifications of HJX300-LL is shown below, however, the specifications can be amended as requested.

Technical Specifications HJX300-LL
Sheet thickness 0.2-0.35 mm
Sheet width 40-300 mm
Cutting length 350-9999 mm
Feeding speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring ≤0.02 mm
Installation capacity 11 kw



Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 0

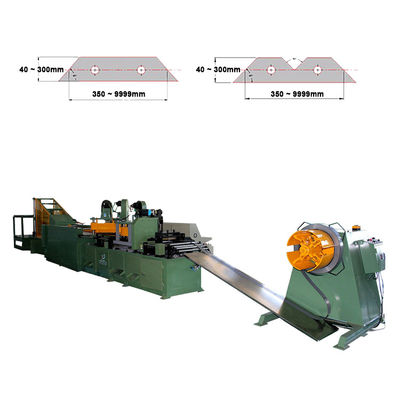

Fig 1: Transformer core cutting machine HJX300-LL's full view



Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 1

Fig 2: Transformer core cutting machine HJX300-LL's side view

Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 2Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 3



Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 4Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 5Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 6Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 7Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 8Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 9Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw 10
