Cold Pressure Welding Copper Foil Winding Machine Making Transformer

Cold Pressure Welding Foils Winder Copper Foil Winding Machine For Making Transformer


Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a special foils winder to wind copper foil or aluminium foil. The wound foil coils can be used to make cast resin transformers and other similar products. The copper foil winding machine is provided with cold pressure unit. This kind of cold pressure welding unit can weld different material, i.e. welding aluminium foil and copper bus bar together or welding copper foil and aluminium bus bar together, and so on. The copper foil winding machine can wind one or two layers of copper foil and wind one or two layers of insulation paper. The copper foil winding machine features slow starting, smooth running, precise action and so on.


Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit


Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

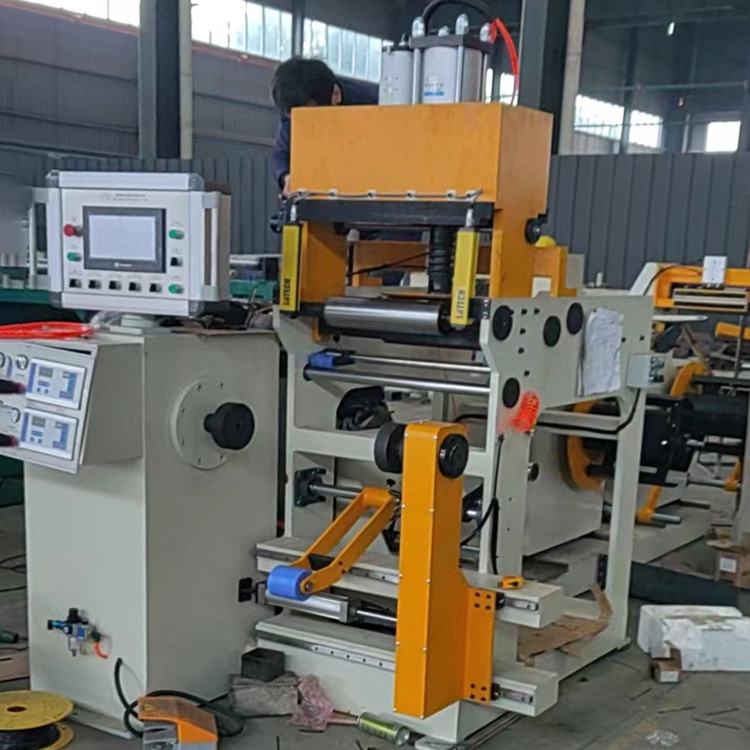

Fig 1: Copper foil winding machine BRJ300-2's front view


Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
