Cold Pressure Welding Sheet Winder Copper Foil Winding Machine AC380V 50Hz

Factory Direct Sales Cold Pressure Welding Sheet Winder Copper Foil Winding Machine


Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a professional foil conductor winder, which can be used to wind copper foils or aluminium foils and the wound foil coils can be used to make cast resin transformers and other similar products. The copper foil winding machine is provided with cold pressure unit to weld aluminium foil and copper bus bar together or copper foil and aluminium bus bar together. The copper foil winding machine can wind one or two layers of foils and wind one or two layers of insulation paper. With PLC control system and HMI, the copper foil winding machine can be operated easily.


Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit


Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

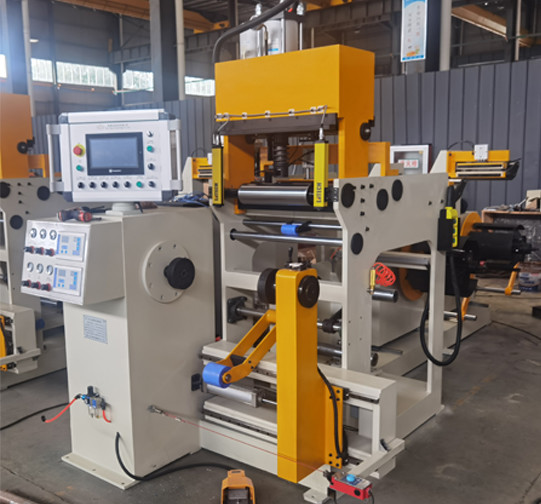

Fig 1: Copper foil winding machine BRJ300-2's front view


Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
