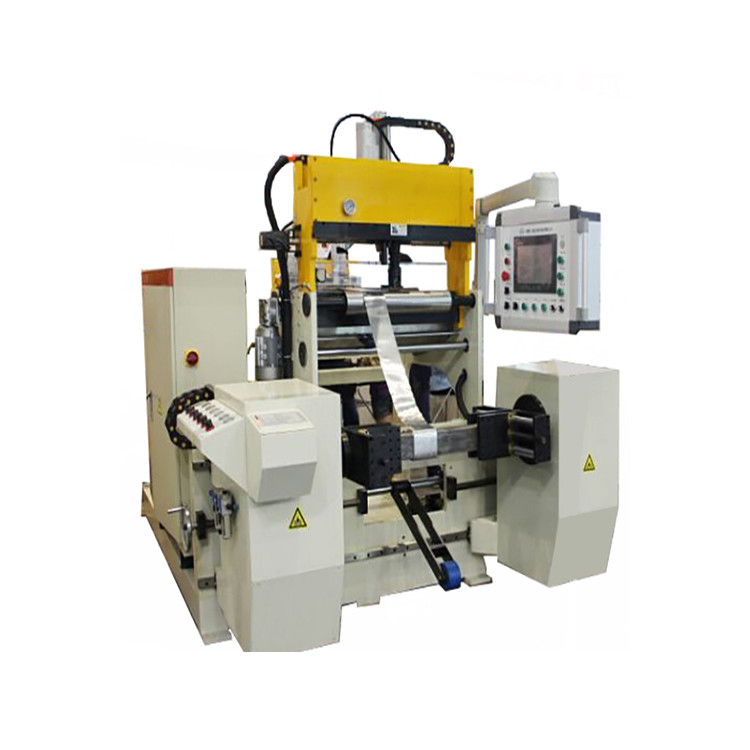

Cold Welding Automatic Copper Foil Winding Machine With 300mm Width Leaf Copper

Cold Welding Automatic Reactor Foil Winding Machine With 300mm Width Leaf Copper

Quick Detail:

• Winding copper or aluminium foil
• Foil material ID 500mm
• Foil material OD 1000mm
• Winding speed 60rpm
• Winding power 4kw
• Automatic cold welding
• One year warranty

Description

Cold Welding Automatic Reactor Foil Winding Machine With 300mm Width Leaf Copper BRJ300-2-2 is a dedicated equipment for winding reactor foil coils and other similar products. This kind of foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. The foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.

Main Components:

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical Parameters

Typical standard specifications of reactor foil winding machine BRJ300-2 are shown below, however these can be modified as requested.
