Description of copper foil winding machine BRJ300-2-2

Copper foil winding machine BRJ300-2-2 is a dedicated equipment for winding reactor foil coils and other similar products. The kind of copper foil winding machine is provided with cold welding, which can weld different kinds of material together, such as copper foil and aluminium bus bar and aluminium foil and copper bus bar. With PLC control system, the copper foil winding machine can run automatically as per the parameters input. The copper foil winding machine features slow starting, smooth running, high automation, full function, etc.

Main components of copper foil winding machine BRJ300-2-2

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however the copper foil winding machine can be manufactured as requested.

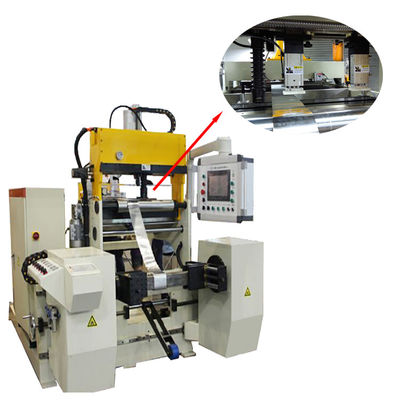

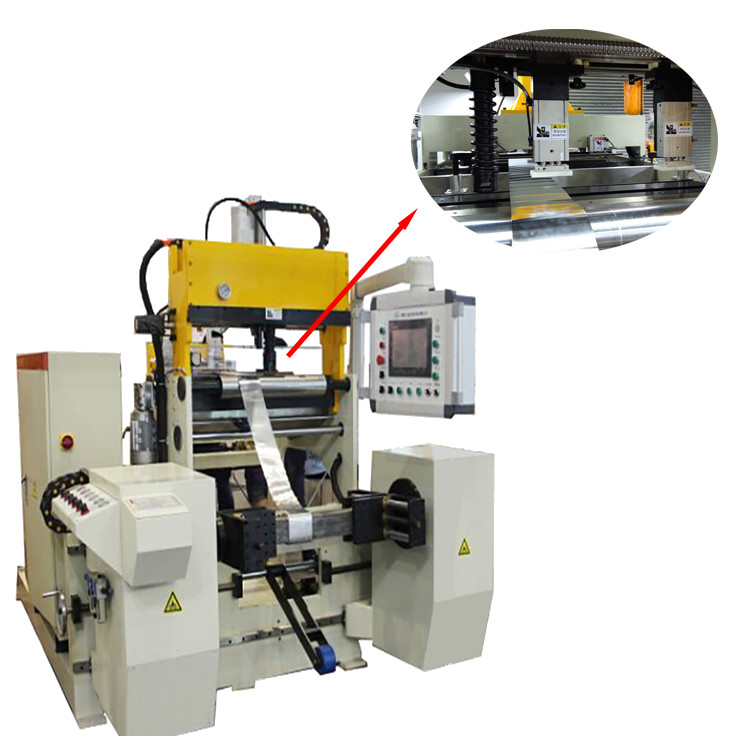

Fig 1: Copper foil winding machine BRJ300-2-2's front view

Fig 2: Copper foil winding machine BRJ300-2-2's foil decoilers
