CRGO Transformer Core Cutting Machine Making Core Limb

1 set
MOQ
negotiable
Price
CRGO Transformer Core Cutting Machine Making Core Limb
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Core Cutting Machine
Function: Making Core Limb
Sheet Thickness: 0.2~0.35mm
Sheet Width: 40 ~ 300mm
Color: Customizable
Warranty: 12 Months
Highlight:

CRGO Transformer Core Cutting Machine

,

0.2mm Transformer Core Cutting Machine

,

40mm small core cutting machine

Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZZ300
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

High Effective CRGO Transformer Core Cutting Machine Making Core Limb





Description of transformer core cutting machine



Transformer core cutting machine ZZ300 is a professional equipment for making core limb for transformer core. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm. The transformer core cutting machine can be used to cut different shapes of the core limb, such as equilateral core limb, eccentric center core limb, etc. The transformer core cutting machine for making core limb features easy operation, high production effective and so on.





Quick details of transformer core cutting machine



Sheet thickness 0.2 ~ 0.35mm

Sheet width 40 ~ 300mm

Feeding speed 180m/min

Power 14kw





Technical parameters of transformer core cutting machine



Typical standard specifications of transformer core cutting machine ZZ300 are shown below, however this can be modified as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Sheet Thickness: 0.2~‌0.35mm
Sheet Width: 40~300mm
Sheet Length: 150~2500mm
Feeding speed: 0~180m/min
Power: 14Kw



CRGO Transformer Core Cutting Machine Making Core Limb 0

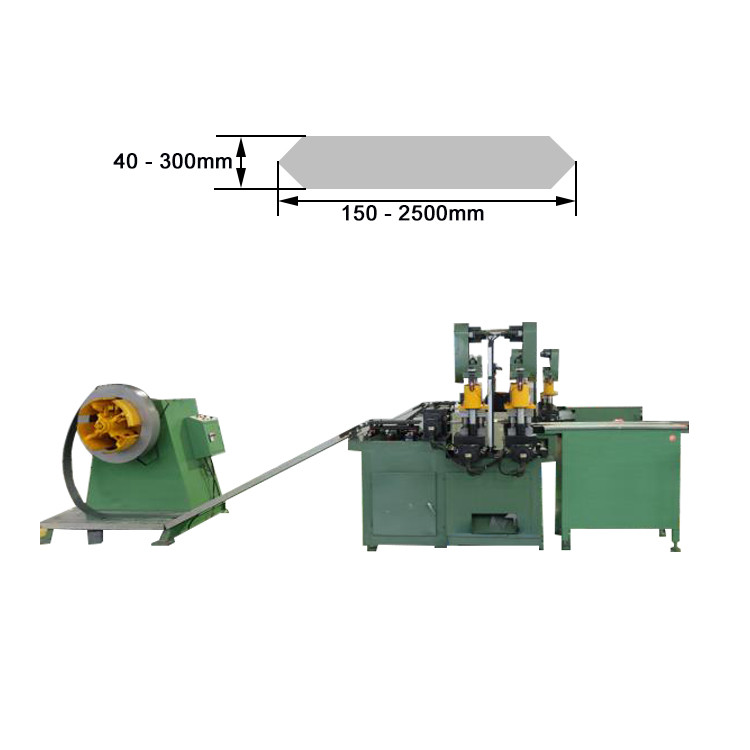

Fig 1: Transformer core cutting machine ZZ300's full view



CRGO Transformer Core Cutting Machine Making Core Limb 1

Fig 2: Transformer core cutting machine ZZ300's side view



CRGO Transformer Core Cutting Machine Making Core Limb 2CRGO Transformer Core Cutting Machine Making Core Limb 3CRGO Transformer Core Cutting Machine Making Core Limb 4CRGO Transformer Core Cutting Machine Making Core Limb 5CRGO Transformer Core Cutting Machine Making Core Limb 6CRGO Transformer Core Cutting Machine Making Core Limb 7CRGO Transformer Core Cutting Machine Making Core Limb 8
