| Name: | Core Limb Cutting Machine | Usage: | Making Core Limb |
|---|---|---|---|
| Sheet Thickness: | 0.23 ~ 0.35mm | Sheet Width: | 40 ~ 300mm |
| Motor Power: | 14kw | Feed Speed: | 180m/min |
| Machine Color: | Customizable | Warranty: | 12 Months |
| Highlight: | Step Lap CRGO Core Cutting Machine,Core Limb Cutting Machine,Pneumatic Transformer Core Cutting Machine |
||
CRGO Cut To Length Line Making Core Limb Step Lap Transformer Core Cutting Machine
Description of transformer core cutting machine of ZZ300-BK
Transformer core cutting machine ZZ300-BK is one kind of core limb cut to length line. The core cutting machine is a special equipment for cutting silicon steel to make transformer iron core limb. The transformer core cutting machine can cut the silicon steel with maximum width 300mm. The function of the transformer core cutting machine can be customized, such as cutting equilateral core limb, eccentric core limb (eccentric angle can be adjusted as requested), step up core limb, same core limb, and so on. The hole can be punched on the core limb as requested.
Main components of transformer core cutting machine ZZ300-BK
1. Single head hydraulic dereeler
2. Slope guide device
3. Feeder
4. Punching and cutting devices
5. Conveyor
6. Pneumatic system
7. PLC control system
Main parameters of transformer core cutting machine ZZ300-BK
The following is the standard specifications of the core limb cut to length line ZZ300-BK. However, the specifications can be modified as requested.
| Supply coil: | Silicon steel |
| Supply coil ID: | 500mm |
| Supply coil OD: | 1200mm maximum |
| Supply coil weight | 1500kg maximum |
| Cutting thickness: | 0.2 ~ 0.35mm |
| Cutting width (step lap): | 40 ~ 300mm (40 ~ 270mm) |
| Cutting length: | 150 ~ 2500mm |
| Feeding speed: | 180m/min |
| Punching diameter: | Φ10mm and Φ24mm |
| Power: | 14kw |

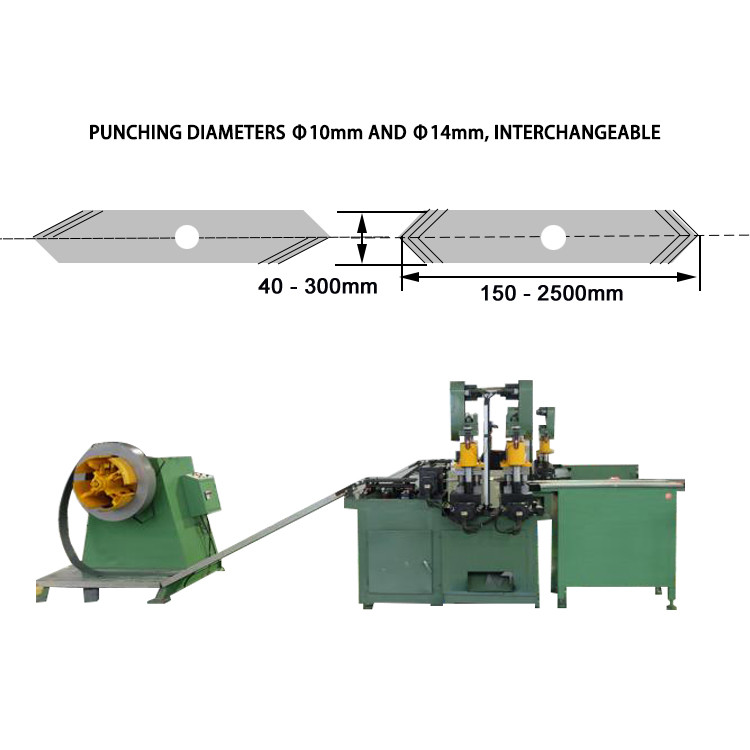

Fig 1: Transformer core cutting machine ZZ300-BK's full view
Fig 2: Transformer core cutting machine ZZ300-BK's side view
