Description of motor coil winding machine MW1200

Motor coil winding machine MW1200 is a special winder and it is mainly used to wind wire coils. These wound coils can be used to make motors or other similar products. The motor coil winding machine is provided with a mold, a counter, foot pedal and etc. The mold is suitable for fixing different kinds of winding anchor, which can wind different sizes of coils. The mold has two movable block, and the distance between two blocks can be adjusted and the adjustable range is from 150mm to 1200mm. The motor coil winding machine can start and stop running through the food pedal. It is very easy to operate the motor coil winding machine.

Quick details of motor coil winding machine MW1200

• Motor power 3kw
• Machine body height 1400mm
• Winding speed 0 ~ 80rpm
• Smooth running
• Adjustable blocks
• Simply structure

Main parameters of motor coil winding machine MW1200

Typical standard specifications of motor coil winding machine MW1200 are shown below, however, the motor coil winding machine can also be manufactured as requested.

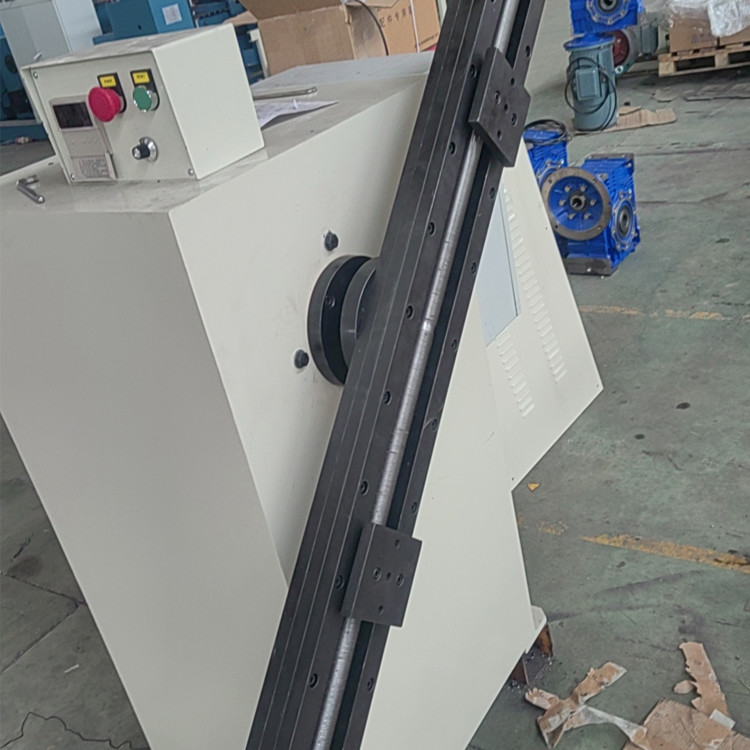

Fig 1: Motor coil winding machine MW1200's full view

Fig 2: Motor coil winding machine MW1200's control board
