Motor Coil Winding Machine Semi Automatic Wire Winder

Motor Coil Winding Machine Semi Automatic Wire Winder

Motor Coil Winding Machine Semi Automatic Wire Winder
Motor Coil Winding Machine Semi Automatic Wire Winder

Large Image :  Motor Coil Winding Machine Semi Automatic Wire Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Motor Coil Winding Machine Function: Winding Motor Coil
Winding Diameter: 1200mm Color: As Requested
Winding Power: 4kw Rotating Speed: 0 ~ 80rpm
Machine Height: 1400mm Warranty Period: 12 Months
High Light:

Semi Automatic Motor Coil Winding Machine

,

Motor Coil Winding Machine Semi Automatic

,

Semi Automatic Wire Winder

Motor Coil Winding Machine Semi Automatic Wire Winder





Description of motor coil winding machine MW1200



Motor coil winding machine MW1200 is a special winder and it is mainly used to wind wire coils. These wound coils can be used to make motors or other similar products. The motor coil winding machine is provided with a mold, a counter, foot pedal and etc. The mold is suitable for fixing different kinds of winding anchor, which can wind different sizes of coils. The mold has two movable block, and the distance between two blocks can be adjusted and the adjustable range is from 150mm to 1200mm. The motor coil winding machine can start and stop running through the food pedal. It is very easy to operate the motor coil winding machine.





Quick details of motor coil winding machine MW1200

  • Motor power 3kw
  • Machine body height 1400mm
  • Winding speed 0 ~ 80rpm
  • Smooth running
  • Adjustable blocks
  • Simply structure

Main parameters of motor coil winding machine MW1200



Typical standard specifications of motor coil winding machine MW1200 are shown below, however, the motor coil winding machine can also be manufactured as requested.



Machine Height: 1400mm
Block Adjustable Range: 150 ~ 1200mm
Winding Speed: 0 ~ 80 rpm
Counter: 0 ~ 9999.9
Max. Capacity: 500KG
Motor Power: 4KW
Colour: customized
Machine weight: 500kgs
Machine Dimension (LxWxH): 900x700x1400mm



Motor Coil Winding Machine Semi Automatic Wire Winder 0

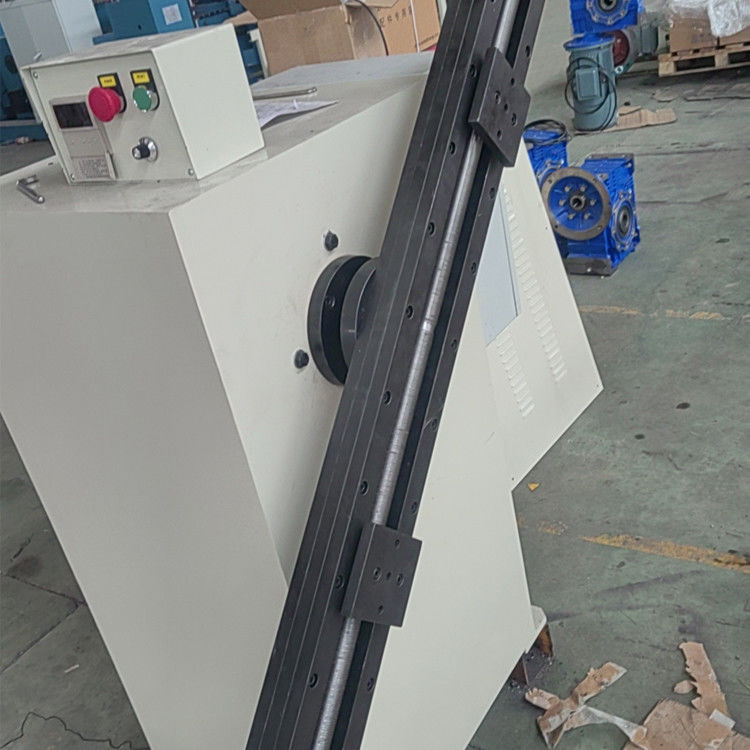

Fig 1: Motor coil winding machine MW1200's full view



Motor Coil Winding Machine Semi Automatic Wire Winder 1

Fig 2: Motor coil winding machine MW1200's control board



Motor Coil Winding Machine Semi Automatic Wire Winder 2Motor Coil Winding Machine Semi Automatic Wire Winder 3Motor Coil Winding Machine Semi Automatic Wire Winder 4Motor Coil Winding Machine Semi Automatic Wire Winder 5Motor Coil Winding Machine Semi Automatic Wire Winder 6Motor Coil Winding Machine Semi Automatic Wire Winder 7Motor Coil Winding Machine Semi Automatic Wire Winder 8Motor Coil Winding Machine Semi Automatic Wire Winder 9
