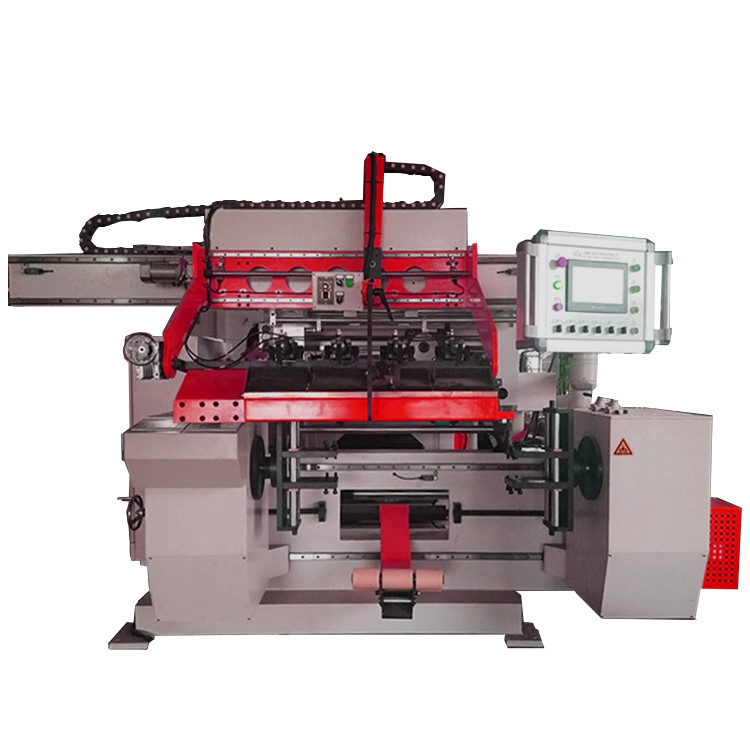

Programmable Automatic Copper Foil Winding Machine Two Motor Driven

1 set
MOQ
negotiable
Price
Programmable Automatic Copper Foil Winding Machine Two Motor Driven
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Name: Copper Foil Winding Machine
Application: Winding Reactor Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm
Al Foil Thickness: 0.3-3.0mm
Warranty: 12 Months
Machine Color: As Requested
Foil Width: 800 Maximum
Foil Type: Copper Or Aluminium
Highlight:

Two Motor Copper Foil Winding Machine

,

Programmable Copper Foil Winding Machine

,

Core Clamping Copper Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Programmable Two Motor Driven Automatic Copper Foil Winding Machine





Description of copper foil winding machine BRJ800-2-2



Copper foil winding machine BRJ800-2-2 is professional equipment for wind reactor foil coils and other similar products. This kind of core-clamping type copper foil winding machine adopts double motors to drive the winding unit, which guarantees two ends have the same torque and ensures the drive heads to wind synchronously. The copper foil winding machine can handle one or two layers of copper or aluminium foil and one or two layers of insulation paper at the same time. With TIG welding unit, the copper foil winding machine can weld foil and bus bar together.





Technical parameters of copper foil winding machine BRJ800-2-2



Typical standard specifications of foil winding machine BRJ800-2-2 are shown below, however these can be easily modified as requested.

Foil width: 250-800mm
Max. Finished Coil OD.: 850mm
Finished Coil Shape: Round, Rectangular, Oval, etc.
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Diameter: 460-520mm
Decoiler Capacity: 1,000KG
Motor Power: 5.5KW*2
Winding Speed: 0 - 24 rpm
Welding System: TIG unit
Welding Speed: 0-0.8m/min
Insulation Decoiler: 2 pcs
Insulation Decoiler Width: 850mm
Insulation Decoiler Shaft: Expandable
Edge Alignment System: Photoelectric sensing
Correction Precision: ±0.5mm
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Turn Range: 0 - 9999.9
