Description of copper foil winding machine BRJ300-2-2

Automatic copper foil winding machine BRJ300-2-2 is a dedicated equipment for winding reactor foil coils and other similar products. This kind of foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. The foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.

Quick details of copper foil winding machine BRJ300-2-2

• Winding both copper foil and aluminium foil
• Supply coil ID 500mm
• Maximum supply coil OD 1000mm
• Winding speed 35rpm
• Winding power 5.5kw
• Automatic cold pressure welding
• PLC control system
• 12 months warranty

Main Components:

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2

Typical standard specifications of reactor copper foil winding machine BRJ300-2-2 are shown below, however these can be modified as requested.

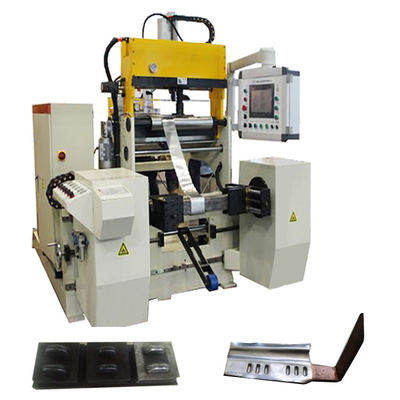

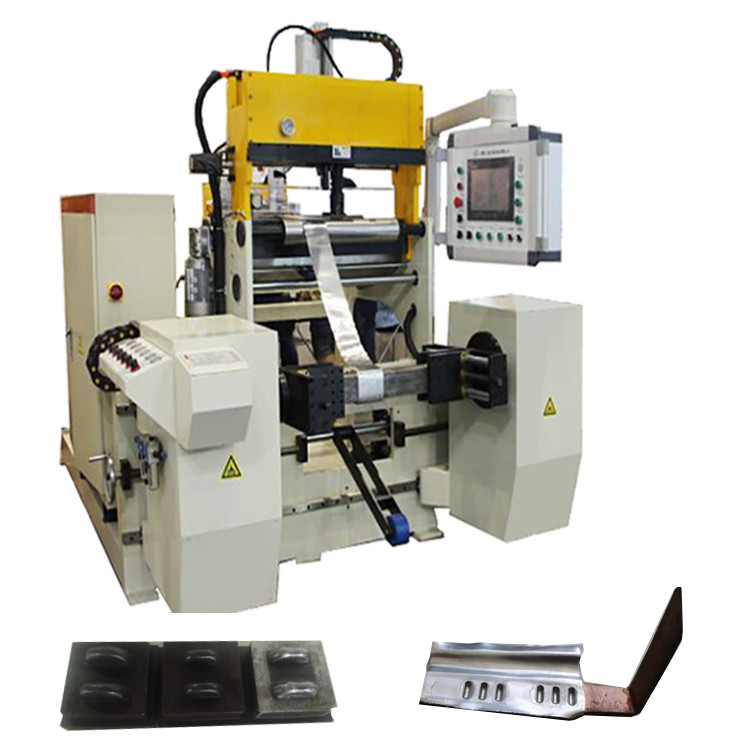

Fig 1: Copper foil winding machine BRJ300-2-2's front view

Fig 2: Copper foil winding machine BRJ300-2-2's foil decoilers
