Description of transformer core cutting machine HJX300-LLB

Transformer core cutting machine HJX300-LLB is a professional cutter equipment. The transformer core cutting machine is mainly for cutting silicon steel strip to make transformer core’s legs or yokes and other similar products. This kind of transformer core cutting machine is with stepping function. With a control system based on PLC, the transformer core cutting machine can cut the silicon steel sheet automatically according to the parameters preset. The punching and cutting actions are driven by servo motors, which guarantees the high efficiency, high precision, low noise and low failure rate. It is very easy to operate the cutting machine.

Quick details of transformer core cutting machine HJX300-LLB

• Cutting thickness 0.23 ~ 0.35mm
• Cutting width 40 ~ 300mm
• Sheet moving speed 120m/min
• Motor power 13kw
• Less than 0.02mm cutting burring
• 12 months warranty

Main parameters of transformer core cutting machine HJX300-LLB

The standard specifications of transformer core cutting machine HJX300-LLB is shown below and the cutting machine can also be manufactured as requested.

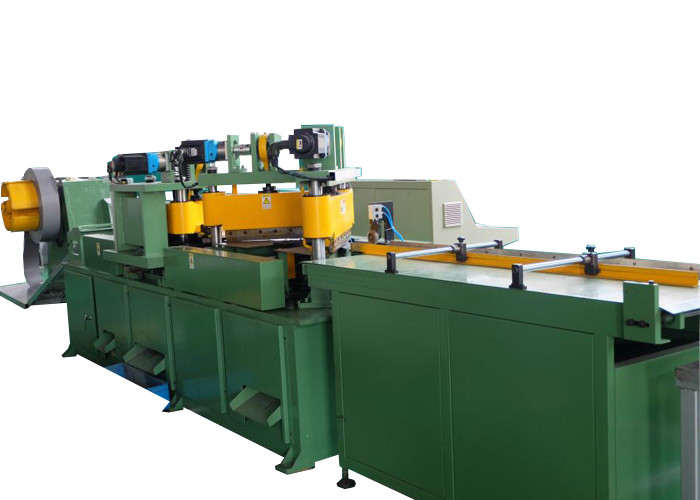

Fig 1: Transformer core cutting machine HJX300-LLB's full view

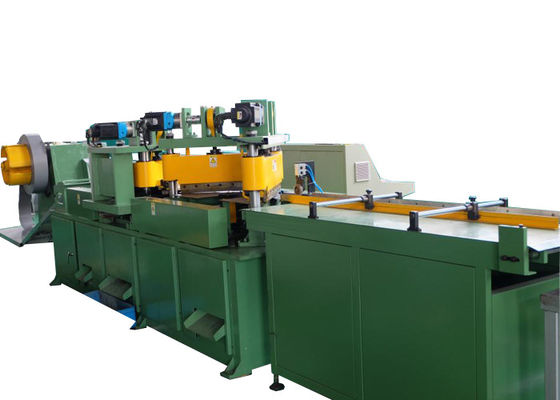

Fig 2: Transformer core cutting machine HJX300-LLB's side view
