Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching

Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching

Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching
Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching

Large Image :  Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Cutting Machines Cutting Mode: Two Punching, Two Cutting
Strip Thickness: 0.23 ~ 0.35mm Strip Width: 40 ~ 400mm
Cutting Speed: 120m/min Warranty Period: 12 Months
Cutting Burring: Less Than 0.02mm Power: 15kw
High Light:

Transformer Core Cutting Machine 2 Punching

,

Silicon Steel Transformer Core Cutting Machine

,

120m/min Transformer Cutting Machine

Two Cutting Two Punching Silicon Steel Transformer Core Cutting Machine





Quick details of transformer core cutting machine HJX400-LL

  • Cutting thickness 0.2 ~ 0.35mm
  • Cutting width 40 ~ 400mm
  • Feeding speed 120m/min
  • Power 12.5kw
  • One year warranty



Description of transformer core cutting machine HJX400-LL



Transformer core cutting machine HJX400-LL is a special cutting machine for cutting silicon steel to make transformer iron core. The transformer core cutting machine features:



1. The transverse shear line adopts single-side location and manual width adjustment. Servo power and full-automatic PLC control system are adopted.

2. Punching and cutting are driven by servo motors at high efficiency, high precision, low noise and low failure rate.

3. AC servo system and controller are adopted in feeding system to realize precise determination of length.

4. HMI is adopted and operators can easily accomplish choice of lamination forms, input and modification of parameters, etc. Through the touch screen.

5. Manual and automatic separation and stacking of materials for quantitative shear.





Main parameters of transformer core cutting machine HJX400-LL



The standard specifications of transformer core cutting machine HJX400-LL is shown below, however, the cutting machine can also be manufactured as requested.



Technical Specifications HJX400-LL
Cutting thickness 0.2 ~ 0.35 mm
Cutting width 40 ~ 400 mm
Cutting length 350 ~ 9999 mm
Feeding speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring ≤0.02 mm
Installation capacity 12.5 kw



Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 0

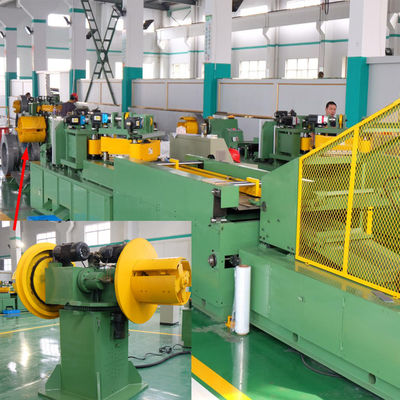

Fig 1:Cut to length line HJX400-LLB's side view



Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 1

Fig 2: Cut to length line HJX400-LLB's coil dereeler



Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 2Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 3

Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 4Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 5Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 6Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 7Silicon Steel Transformer Core Cutting Machine Two Cutting Two Punching 8
