TIG Two Foil Decoilers Reactor Copper Foil Winding Machine 11kw

Two Foil Decoilers Reactor Copper Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Copper foil winding machine BRJ600-2-2 is a professional equipment for reactor coils. With two foil decoilers, this kind of copper foil winding machine can wind one or two layers of both copper foil and aluminium foil . The copper foil winding machine is provided with two chucks to clamp iron core and the conductor foil can be wound on the iron core directly. With PLC and HMI, the copper foil winding machine features smooth running, easy operation, high automation and so on.

Quick details of copper foil winding machine BRJ600-2-2

• Two servo motors driving
• Two chucks clamping iron core
• Foil material ID 500mm
• Maximum foil material OD 1000mm
• Maximum winding speed 26rpm
• Winding power 11kw
• TIG welding unit
• Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below and the foil winding machine can also be manufactured as requested.

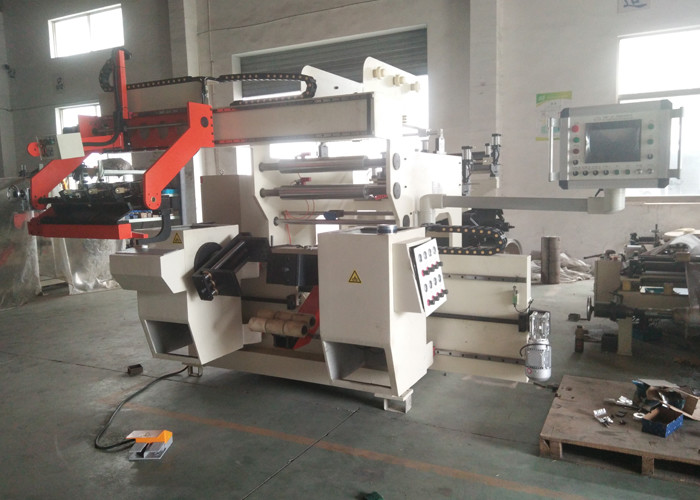

Fig 1: Copper foil winding machine BRJ600-2-2's front view

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
