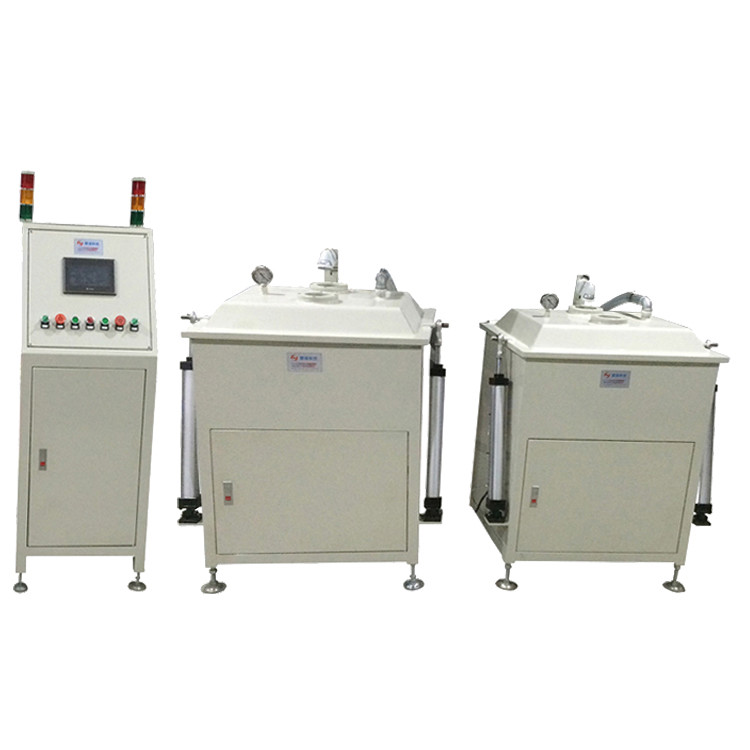

Two Cylinder Automatic Impregnation Machine Transformer Making Equipment

1 set
MOQ
negotiable
Price
Two Cylinder Automatic Impregnation Machine Transformer Making Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Name: Vacuum Pressure Impregnation
Usage: Making Transformer
Internal Box Size: L705*W540*H300mm
Lifting Plate Size: L675*W515*H105mm
Single Cylinder Size: L950*W660*H1160mm
Control Box: L500*W540*H1300mm
Highlight:

Two Cylinder automatic impregnation machine

,

STT vacuum pressure impregnation

,

stepper motor automatic impregnation machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Model Number: THY-Z03
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Transformer Making Equipment Two cylinder automatic impregnation machine





Description of impregnation machine THY-Z03



Impregnation machine THY-Z03 adopts stepper motor to drive ball screw with moving slot lifting type impregnation, preset lifting height. With control system based on PLC, the machine can be preset a variety of impregnation modes. The machine is with timely, appropriate elimination of bubble function. The machine is also with automatic switch box cover and secondary automatic vacuum, which saves time and efforts and protects environment, saving energy. One operator can operating several machines. With double glass observation window, the immersion process can be seen at any time.





Dimensions of vacuum pressure impregnation THY-Z03



Internal dimensions of the box L705*W540*H300mm
Lifting plate (to lift the varnish) L675*W515*H105mm
product tray 220*640*30mm
Lifting plate (to lift the varnish) L675*W515*H105mm
Single cylinder size L950*W660*H1160mm
Control box size L500*W540*H1300mm
Tag:

STT Transformer Manufacturing Equipment

stepper motor automatic impregnation machine

STT vacuum pressure impregnation
