Practical Semi Automatic Oil Immersed Transformer Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Center Heigth: | 1000mm | Winding Shaft: | 40x40mm |
| Tailstock: | Split Type | Machine Color: | As Requested |
| Counter: | Digital Type | Winding Speed: | 0 ~ 200rpm |
Practical Semi Automatic Oil Immersed Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-1T
Transformer coil winding machine GDY-1T is a special wire winder. This kind of transformer coil winding machine can wind both copper wire and aluminium wire to make transformer coil. The transformer coil winding machine is provided with a counter for counting turns when winding. The winding speed of the transformer coil winding machine can be adjusted through a potentiometer. The foot pedal of the transformer coil winding machine is with functions of stop / start machine and switching the rotating direction. The transformer coil winding machine features easy operation and so on.
Quick details of transformer coil winding machine GDY-1T
- Winding copper or aluminium wire
- Maximum winding width 800mm
- Maximum capacity 1000kg
- Winding power 3kw
- Winding shaft size 40x40x1000mm
- Two speed gear
Specifications of transformer coil winding machine GDY-1T
Typical standard specifications of coil winding machine GDY-1T are shown below and the coil winding machine can also be manufactured as requested.
| Center Height: | 1000mm |
| Shaft Size: | 40x40x1000mm |
| Flange Square Hole Size: | 40x40mm |
| Winding Speed: | 0 ~ 200rpm |
| Speed Gear: | 2 pcs |
| Maximum Winding Winding: | 800mm |
| Counting Range: | 0 ~ 9999.9 |
| Maximum Capacity: | 1000KG |
| Power: | 3KW |
| Total Weight: | 500 kg |
| Dimension(LxWxH): | 2800x700x1400mm |

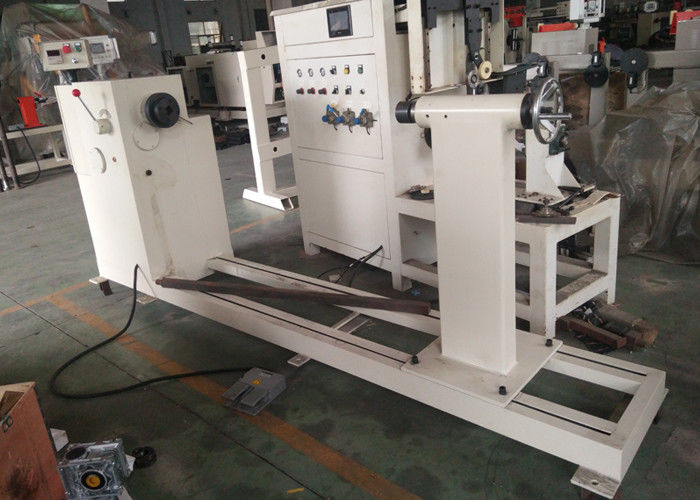

Fig 1: Transformer coil winding machine GDY-1T's full view
Fig 2: Transformer coil winding machine GDY-1T's tailstock
